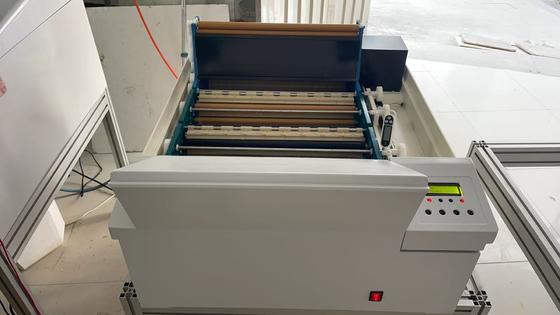

NDT X-ray Flaw Detector / Film Developer Processor With Digital Display HDL-P17A

HDL-P17A NDT is the two high market, economical and practical industrial flushing machine. It washes the width and speed of high quality, good reliability and various specifications. It is widely used in the construction of boiler, shipbuilding, pressure vessel, petroleum and natural gas pipeline, and the quality inspection of various kinds of dynamic and pressure equipment. Praised by the clients of the testing industry.

• digital display: all set parameters can be read from the operation panel, easy to operate, include wide security; operation panel, can be personalized: running time, flushing temperature and replenishment.

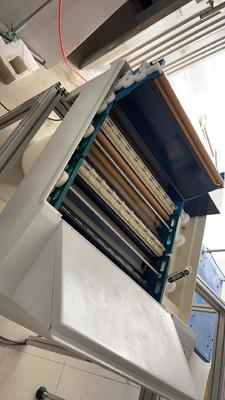

• The shaft rack system of L precision roller can protect film transmission and facilitate daily cleaning and maintenance.
• drying system adopts special roller combination and electronic control to ensure hot air drying film.
• anti crystallization and anti-oxidation program design, continuous circulation of liquid, prevent the aging of liquid, prolong the use time, and get high-quality image.

• 1. development synchronous heating system
• 2. development of independent circulation system
• 3. development synchronous supplementary system
• 4. water controlled water saving system of solenoid valve
• 5. professional conical air duct drying system
• 6. mechanical sensing feeding system
• 7. DKM electronic speed control energy saving system

The size of u film

is minimum 60 * 100mm, the widest 450mm width and the longest film is 15 meters.

film type

film & sheet film

The running time of u

is 4.5 to 14 minutes

chip speed

100~33 mm / min

development time

is 60-180 seconds (recommended for 90 seconds)

washing volume

350*430mm 25 sheets / hour; 80*300mm 100 sheets / hour.

volume development, fixing and washing

each 6.8 liters.

supplementary volume

automatic test supplement 50-200 ml / m2

development temperature

can be adjusted from 20-40 degrees

setting temperature

automatically adjusts according to developing temperature

drying temperature

40-70 degrees

water temperature

5~30 degree

water consumption

film is less than 2 liters / minutes during operation

power

220~240V8.8A 50 or 60Hz

weight

60 kg

volume (long * width * height)

78 x 59 x 45 cm
