HG6430 Digital Vibration Meter for acceleration, velocity and displacement testing

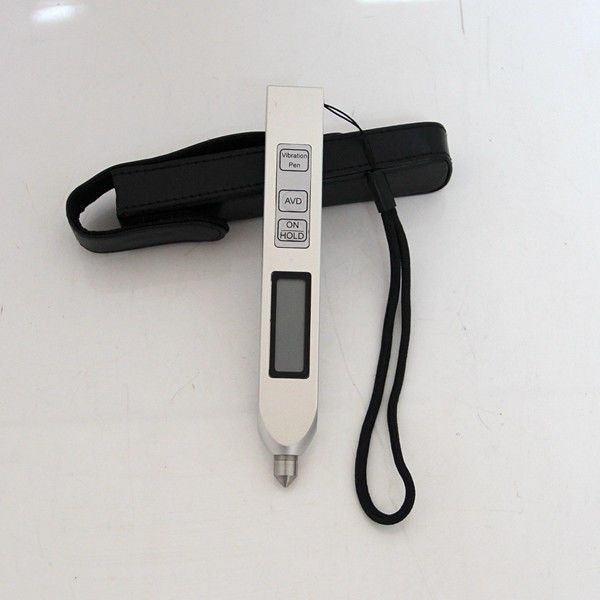

Large Image : HG6430 Digital Vibration Meter for acceleration, velocity and displacement testing

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	HG6430

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

Contact Now

HG6430 Digital Vibration Meter for acceleration, velocity and displacement testing

Description

Accuracy:

±5% ± 2digits

Display:

3 1/2 Digits LCD

Power Supply:

Two Button Batteries(LR44 Or SR44)

Operating Temperature:

0℃ ~ 40℃

Highlight:

digital vibration meter for acceleration testing

vibration meter for displacement measurement

HG6430 vibration meter with warranty

HG6430 Digital Vibration Meter for acceleration, velocity and displacement testing

Features:

Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so on.
Compact size, small weight, easy handling
Prompt testing of vibration on the workshop machines
For quick checking of unbalance misalignment, bearings and gears
Guard against mechanical malfunction
Holding tested value for 40 seconds
Automatic switch off after 40 seconds
HG6410 is used specially for velocity testing
HG6430 is used for acceleration, velocity and displacement testing

Technical Specifications:

Model	HG6410	HG6430
Parameter	RMS of vibration velocity (mm/s)	Acceleration, Velocity, Displacement
Testing range	Velocity: 0.1mm/s~ 199.9mm/s	Acceleration:0.1m/s²-199.9m/s²(peak) Velocity: 0.1mm/s-199.9 mm/s(RMS) Displacement: 0.001mm-1.999 mm (peak-peak)
Frequency range	Velocity:10Hz ~ 1kHz	Acceleration: 10Hz ~ 1kHz(LO) 1kHz ~ 15kHz(HI) Velocity: 10Hz ~ 1kHz Displacement: 10Hz ~ 500Hz
Accuracy	±5% ± 2digits
Display	3 1/2 digits LCD
Power supply	two button batteries(LR44 or SR44)
Battery capacity	Approx. 5 hours working continuously
Operating temperature	0℃ ~ 40℃
Humidity	<85%
Dimension	150mm×22mm×16mm

Configuration:

	NO.	Item	Quantity
Standard Configuration	1	Main uni.	1
	2	Screwdriver	1
	3	Batteries SR44LR44 1.5V	2
	4	Box	1
	5	Document	1(set)
