HG6430 Digital Vibration Meter for Acceleration Velocity Displacement Measurement with ±5% Accuracy and Compact Lightweight Design

HG6430 Digital Vibration Meter for Acceleration Velocity Displacement Measurement with ±5% Accuracy and Compact Lightweight Design
HG6430 Digital Vibration Meter for Acceleration Velocity Displacement Measurement with ±5% Accuracy and Compact Lightweight Design HG6430 Digital Vibration Meter for Acceleration Velocity Displacement Measurement with ±5% Accuracy and Compact Lightweight Design

Large Image :  HG6430 Digital Vibration Meter for Acceleration Velocity Displacement Measurement with ±5% Accuracy and Compact Lightweight Design

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HG6430
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

HG6430 Digital Vibration Meter for Acceleration Velocity Displacement Measurement with ±5% Accuracy and Compact Lightweight Design

Description
Parameter: Acceleration, Velocity, Displacement

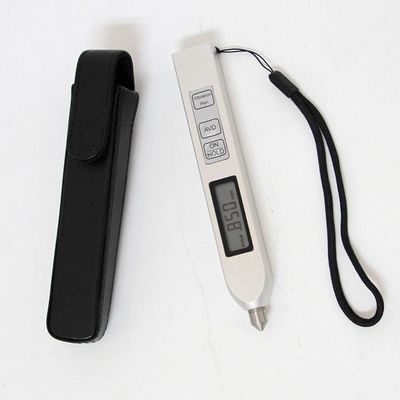

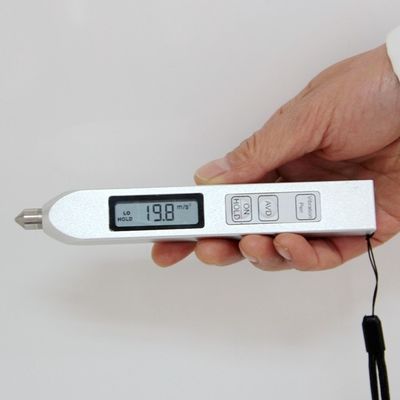

HG6430 Digital Vibration Meter for Acceleration, Velocity & Displacement Measurement
Product Overview

The Model HG6410/HG6430 Vibration Meter is designed for fast failure detection in industrial machinery including motors, electric fans, pumps, air compressors, and machine tools.

Key Features
  • Compact size and lightweight design for easy handling
  • Prompt vibration testing on workshop machinery
  • Quick checking of unbalance, misalignment, bearings, and gears
  • Guards against mechanical malfunction
  • Holds tested values for 40 seconds
  • Automatic switch-off after 40 seconds
  • HG6410 specialized for velocity testing
  • HG6430 measures acceleration, velocity, and displacement
Technical Specifications
Parameter HG6410 HG6430
Measurement Type RMS of vibration velocity (mm/s) Acceleration, Velocity, Displacement
Testing Range Velocity: 0.1mm/s ~ 199.9mm/s Acceleration: 0.1m/s² ~ 199.9m/s² (peak)
Velocity: 0.1mm/s ~ 199.9mm/s (RMS)
Displacement: 0.001mm ~ 1.999mm (peak-peak)
Frequency Range Velocity: 10Hz ~ 1kHz Acceleration: 10Hz ~ 1kHz (LO), 1kHz ~ 15kHz (HI)
Velocity: 10Hz ~ 1kHz
Displacement: 10Hz ~ 500Hz
Accuracy ±5% ± 2 digits
Display 3½ digits LCD
Power Supply Two button batteries (LR44 or SR44)
Battery Capacity Approx. 5 hours continuous operation
Operating Temperature 0℃ ~ 40℃
Humidity <85%
Dimensions 150mm × 22mm × 16mm
Standard Configuration
Item No. Item Quantity
1 Main Unit 1
2 Screwdriver 1
3 Batteries (SR44/LR44 1.5V) 2
4 Box 1
5 Documentation 1 set
