Model HG6410 Vibration Meter with 10Hz to 1kHz Frequency Range and 0.1mm/s to 199.9mm/s Testing Range Compact and Lightweight

Model HG6410 Vibration Meter with 10Hz to 1kHz Frequency Range and 0.1mm/s to 199.9mm/s Testing Range Compact and Lightweight
Model HG6410 Vibration Meter with 10Hz to 1kHz Frequency Range and 0.1mm/s to 199.9mm/s Testing Range Compact and Lightweight Model HG6410 Vibration Meter with 10Hz to 1kHz Frequency Range and 0.1mm/s to 199.9mm/s Testing Range Compact and Lightweight

Large Image :  Model HG6410 Vibration Meter with 10Hz to 1kHz Frequency Range and 0.1mm/s to 199.9mm/s Testing Range Compact and Lightweight

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HG6410
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

Model HG6410 Vibration Meter with 10Hz to 1kHz Frequency Range and 0.1mm/s to 199.9mm/s Testing Range Compact and Lightweight

Description
Testing Range: Velocity: 0.1mm/s~ 199.9mm/s

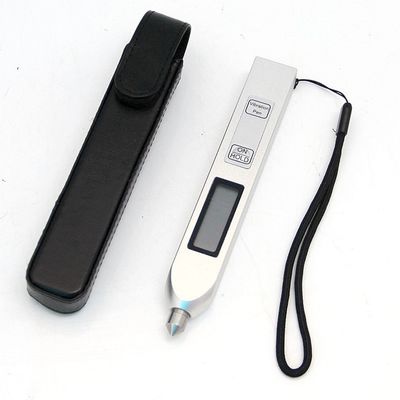

Model HG6410 Vibration Meter
Product Overview

The Model HG6410/HG6430 Vibration Meter is designed for rapid failure detection in industrial machinery including motors, electric fans, pumps, air compressors, and machine tools.

Key Features
  • Compact size and lightweight design for easy handling
  • Prompt vibration testing capability for workshop machinery
  • Quick detection of unbalance, misalignment, bearing and gear issues
  • Prevents mechanical malfunctions through early detection
  • Holds tested values for 40 seconds
  • Automatic switch-off after 40 seconds of inactivity
  • HG6410: Specialized for velocity testing
  • HG6430: Comprehensive testing for acceleration, velocity, and displacement
Technical Specifications
Parameter HG6410 HG6430
Measurement Type RMS of vibration velocity (mm/s) Acceleration, Velocity, Displacement
Testing Range Velocity: 0.1mm/s ~ 199.9mm/s Acceleration: 0.1m/s² ~ 199.9m/s² (peak)
Velocity: 0.1mm/s ~ 199.9mm/s (RMS)
Displacement: 0.001mm ~ 1.999mm (peak-peak)
Frequency Range Velocity: 10Hz ~ 1kHz Acceleration: 10Hz ~ 1kHz (LO), 1kHz ~ 15kHz (HI)
Velocity: 10Hz ~ 1kHz
Displacement: 10Hz ~ 500Hz
Accuracy: ±5% ± 2 digits
Display: 3½ digits LCD
Power Supply: Two button batteries (LR44 or SR44)
Battery Capacity: Approximately 5 hours continuous operation
Operating Temperature: 0℃ ~ 40℃
Humidity: <85%
Dimensions: 150mm × 22mm × 16mm
Standard Configuration
Item No. Component Quantity
1 Main Unit 1
2 Screwdriver 1
3 Batteries (SR44/LR44 1.5V) 2
4 Box 1
5 Documentation 1 set
