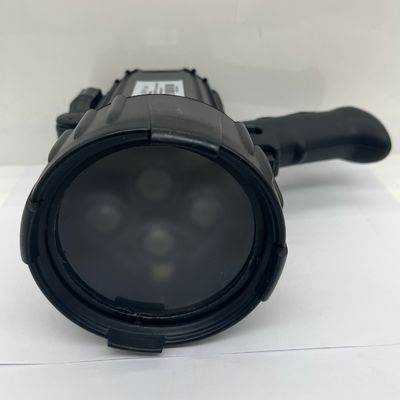

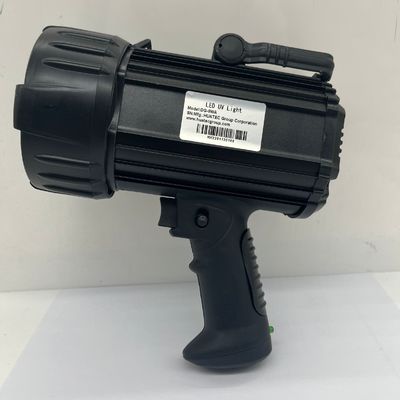

HUATEC Handheld LED-UV Light with 8000uw/cm2 Irradiance 30000H Life and Dual UV White Light Function

HUATEC Handheld LED-UV Light with 8000uw/cm2 Irradiance 30000H Life and Dual UV White Light Function
HUATEC Handheld LED-UV Light with 8000uw/cm2 Irradiance 30000H Life and Dual UV White Light Function HUATEC Handheld LED-UV Light with 8000uw/cm2 Irradiance 30000H Life and Dual UV White Light Function

Large Image :  HUATEC Handheld LED-UV Light with 8000uw/cm2 Irradiance 30000H Life and Dual UV White Light Function

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: DG-9WA
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

HUATEC Handheld LED-UV Light with 8000uw/cm2 Irradiance 30000H Life and Dual UV White Light Function

Description
Style: Handheld Power Supply: AC100-240V 50/60Hz
Power: UV LED-9VA Light-3VA Wave Length: 365nm±3nm(UVA) (Indoor Temperature 25℃)

HUATEC Handheld Charging Style LED-UV Light DG-9WA

HUATEC Handheld Charging Style LED-UV Light
Model No.: DG-9WA

Key Characteristics
  • Irradiance >8000μW/cm²
  • Internal batteries with pre-alert and protection for low power
  • Light source life: 30,000 hours
Technical Specifications
Item Parameter
Style Handheld
Quantity of Lamp Head UV head: 3pcs, White light head: 1pc
UV/Light Flux (25℃) UV-MAX 8000μW/cm², Light-MAX 1500LUX
Grading Feature Centre grading
Irradiation Area (≥1000μW/cm² at 380mm depth) Φ170mm
Wavelength Accuracy ±3nm
Power Supply AC100-240V 50/60Hz
Power UV LED-9VA, Light-3VA
Wavelength 365nm±3nm (UVA) at 25℃
Outline Dimension 203mm(W) * 110mm(D) * 220mm(H)
Weight 1kg
Battery Capacity 5800mAh 12.6V
Charging Time 4-5 hours
Battery Cumulative Time UV LED: 5-6 hours or Light: 16 hours
Product Features
  • 9VA power saving consumption
  • 30,000 hours light source life expectancy
  • High quality UV LED light source
  • 0 UV-B contained
  • Battery endurance: 5-6 hours
  • Pre-alert and protection for low power
  • Lightweight design: only 1kg including batteries
  • Built-in battery, no external wiring required
  • Three-minute delay (power saving) / constant lighting mode switching
  • Quartz and optical glass module (not PMMA material) with excellent weather resistance
  • Continuous operation with external surface temperature rise less than 5℃
  • No preheat required - instant 100% power
  • Dual function: UV and white light with one-hand switch
