Stepwedge Hole Image Quality Indicator H5/H9/H13 Steel Radiographic Testing Image Quality Penetrameter For X Ray Flaw Inspection

Stepwedge Hole Image Quality Indicator H5/H9/H13 Steel Radiographic Testing Image Quality Penetrameter For X Ray Flaw Inspection
Stepwedge Hole Image Quality Indicator H5/H9/H13 Steel Radiographic Testing Image Quality Penetrameter For X Ray Flaw Inspection Stepwedge Hole Image Quality Indicator H5/H9/H13 Steel Radiographic Testing Image Quality Penetrameter For X Ray Flaw Inspection

Large Image :  Stepwedge Hole Image Quality Indicator H5/H9/H13 Steel Radiographic Testing Image Quality Penetrameter For X Ray Flaw Inspection

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: carton packaging
Delivery Time: 5-7 working days after receipt of your payment
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 10 Sets/YEAR
Contact Now

Stepwedge Hole Image Quality Indicator H5/H9/H13 Steel Radiographic Testing Image Quality Penetrameter For X Ray Flaw Inspection

Description
Standards: EN 462-2 Material: FE
Highlight:

Steel radiographic testing stepwedge

,

X-ray flaw inspection penetrameter

,

Hole image quality indicator H5

Stepwedge Hole Image Quality Indicator H5/H9/H13 Steel Radiographic Testing Image Quality Penetrameter For X Ray Flaw Inspection


Radiography: Accessories
Image Quality Indicators (I.Q.l's) - Penetrameters
EN 462-2 stepwedae/hole type penetrameters

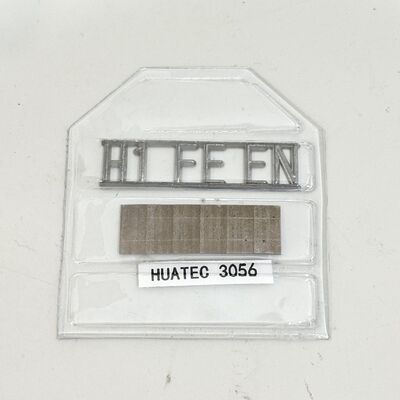

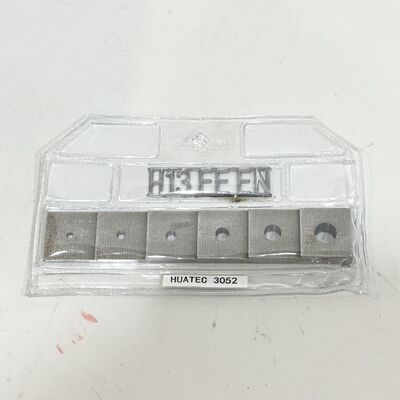

Stepwedge in shape and available in four Model Numbers H1 H5, H9 and H 13 in Steel.


Model Stepwedge Range Steel Workpiece Thickness
H1 0.125 ~ 0.50 mm ＜2.5 mm
H5 0.32 ~ 1.0 mm 16 ~ 50 mm
H9 0.80 ~ 2.5 mm 40 ~ 125 mm
H13 2.0 ~ 6.3 mm 100 ~ 315 mm

Stepwedge Hole Image Quality Indicator H5/H9/H13 Steel Radiographic Testing Image Quality Penetrameter For X Ray Flaw Inspection 0

Stepwedge Hole Image Quality Indicator H5/H9/H13 Steel Radiographic Testing Image Quality Penetrameter For X Ray Flaw Inspection 1

Stepwedge Hole Image Quality Indicator H5/H9/H13 Steel Radiographic Testing Image Quality Penetrameter For X Ray Flaw Inspection 2
