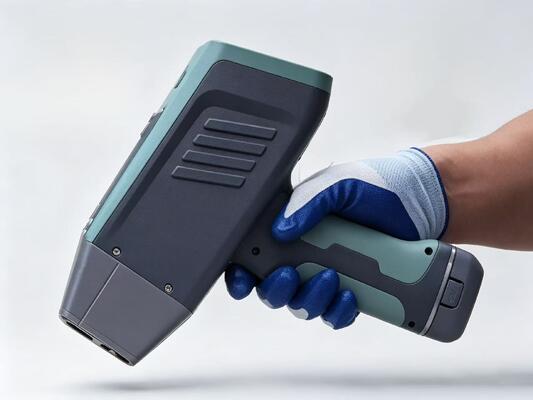

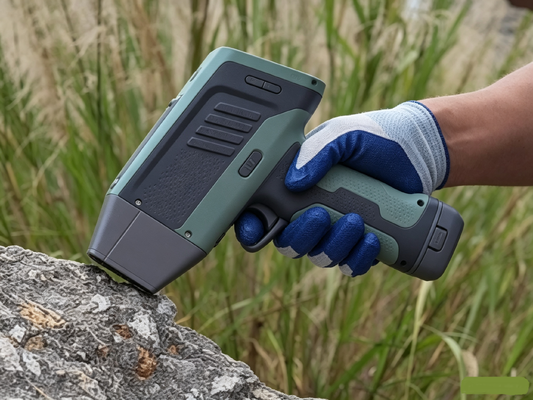

HXRF-600plus Handheld XRF Mineral Element Analyzer IP65 Waterproof Built-in GPS Bluetooth Portable Ore Grade Detector For Geological Prospecting
Commodity description
HXRF-600plus portable mineral element analyzer is very rugged and can complete extremely demanding applications in extremely harsh environments. It complies with IP 65 * rating standard, has dust-proof and waterproof performance, has passed the fall protection test, and can work normally in the temperature range of - 10 ° C to 80 ° C. HUATEC HXRF-600plus analyzer can perform rapid and accurate elemental analysis. HUATEC technology newly developed by HUATEC Group is applied to each equipment. This technology is an innovation in XRF signal processing, which can provide accurate and highly repeatable results, so that users can obtain higher productivity and rapid return on investment.
Technical Specifications :
| Detection elements |
can be used for metal elements in ore and soil environments, such as Mg, Al, Si, P, S, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Hf, Ta, W, Hg, Se, Au, Br, Pb, Bi, Zr, Nb, Mo, Ag, Cd, Sn, Sb, Re, Ir, Pt, Hg, Ru, Rh, Pd, etc. (Red represents the SDD detector configuration)
|
| Detectors |
Moxtek Si pin (6 mm2) from the United States, Amptek Si pin (25 mm2) from the United States, KETEK SDD detectors from Germany
|
| Excitation source |
high-power micro straight plate X-ray tube, W target, 4W high-power X-ray tube, tube voltage 50KV, tube current up to 100 μ A |
| calibration |
Adopting HUATEC technology, with higher X-ray counting rate and ultra-low electronic noise design. Before each test, there is no need for external standard samples and automatic energy calibration verification;
|
| Filter |
Equipped with 8 filters that can be automatically switched based on the test elements |
| Testing method |
Basic parameter method, supporting empirical coefficient method correction
|
| Operating system |
Win dow CE 6.0 operating system, safe and reliable |
| Self diagnosis function |
The instrument can automatically diagnose hardware, software, network, battery, etc., and generate logs for quick troubleshooting |
| test |
Touch or pull the trigger to control the start of the test, and the test process does not require a long pull of the trigger. According to customer needs, samples can also be tested continuously by pressing the trigger
|
| Standard configuration mode |
ore mode; Optional modes: alloy analysis mode, soil analysis mode
|
HXRF-600plus hand-held mineral element analyzer
With years of experience in the development of mineral element science spectrometer (hand-held spectrometer), HUATEC's new generation of hand-held XRF mineral element analyzer, HXRF-600plus, once again brings a revolution in the field of analysis. HXRF-600plus introduces digital multi-channel technology, so that the detection limit is lower, higher stability, wider application, performance comparable to desktop; The compact and portable volume plays a full role in prospecting, prospecting, multi-element detection and analysis of various geological mineral element samples and slag refining analysis, making prospecting work more simple and easy.
Geological and mining industry application advantages
Detection elements: more than 30 elements can be detected in standard configuration, and detection elements can be added according to customer requirements
Professional: special edition of mineral element analysis software, the use of intelligent key test
Customized work mode
A variety of mineral element sample mode selection and unlimited number of modes can be added freely, according to customer needs to customize the working mode.
Accurately define mine boundaries
With built-in GPS function, the satellite signal can be searched at any time in the field, and the longitude, latitude and altitude of the measurement can be recorded at any time during the test, and the geographical location information of the sampling point can be determined and saved along with the test report.
* The obtained coordinate analysis data can be drawn into the mineral element distribution map, so as to quickly survey a large range of mining areas, accurately grasp the vein trend, define the mine boundary, and give priority to mining rich areas, which greatly improve production efficiency.
* Built-in Bluetooth function. After bluetooth printer is configured, it can realize the function of "testing and beating at the same time" for the in-situ test of key mining areas.
* Fully exploit mine value
The HD camera enables a more intuitive observation of the detected vein or spot, and accurate management and control of the mining process to detect mineral element grade at any time.
* Accurate and rapid analysis of raw mineral element, concentrate and tailings in the process of mineral element dressing, providing value judgment basis for mineral element grade determination, mineral trade, processing and reuse.
* Environmental monitoring
Monitoring and detection of heavy metals in the soil around the mining mine, assessment of the remediation of the mine environment, and maximum monitoring of the environment around the mine.
Main application:
Hand-held mineral analyzer is used for rapid analysis and determination of non-ferrous metal elements in mining, geology, soil environment, bottom mud and sediment.
Standard delivery:
1. HXRF-600plus mineral analyzer 1pc
2. Carrying box 1pc
3. Batteries 2pcs
4. Charger 1pc
5. Instruction manual 1pc
6. Standard block 1 pc
7. Anti-fall wrist strap 1pc
8. USB flash disk for software data backup 1pc
9. Window films
Optional accessories:
All kinds of calibration block
