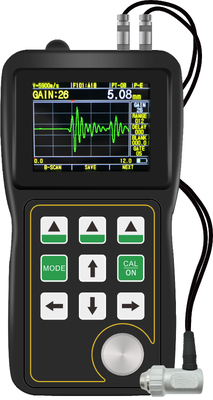

TG-5100D Real time A Scan and B Scan Through Coating Ultrasonic Thickness Gauge

Display

2.4 inch TFT QVGA(320×240) color OLED screen with contrast ratio of 1010:1

working principle

Ultrasonic pulse/echo/Echo method using double Crystal probe

Measuring range

0.5 to 508 mm (0.025 to 20.00 in)

Measurement resolution

0.01 or 0.1mm(0.001 or 0.01in)

Unit

Millimeter or inch

Display mode

Thickness value mode, min/Max capture mode, difference/reduction mode

V path correction

Automatic V path correction compensates for the nonlinearity of the twin probe

Measurement update rate

Optional 4HZ, 8HZ, or 16HZ per second

Material speed range

500-9999m/s,0.0179-0.3937in/u

Working language

Chinese/English/French (optional)

Alarm set

Max/min alarm, dynamic change thickness reading color when alarm

Power supply

Two 1.5V AA batteries

Operating time

Two AA batteries, more than 35 hours of service

The instrument to turn it off

Optional Automatic shutdown after no operation is performed for 5, 10, or 20 minutes, or manual shutdown

Size

-10 to +50 ºC, up to 20 ºC with special requirements

Weight

153mm×76mm×37mm(H×W×D)

Shelf life

Contain battery 280g

Warranty

12 Months

High temperature probe

Cast iron probe

Narrow tube probe

Miniature probe

Probe cable

Step block

Rubber Sheath

Probe described

Frequency(MHZ)

Contact area Diameter

Measuring range

(In steel)

Allowed Contact  Temperature

Cast iron probe ZT12

2

16.2mm

(4.0~508.0)mm

(-10~60)ºC

Standard probe PT12

5

13.5mm

(1.2~200.0)mm

(-10~60)ºC

Standard probe PT08

5

11mm

(0.8~100.0)mm

(-10~60)ºC

Standard probe  TC510

5

13.5mm

(1.0~270.0)mm

(-10~70)ºC

Small crystal tube probe PT06

7.5

8mm

(0.8~30.0)mm

(-10~60)ºC

Miniature probe PT04

10

6mm

(0.7~12.0)mm

(-10~60)ºC

High temperature probe

5

14mm

(4.0~80.0)mm

Below 480ºC
