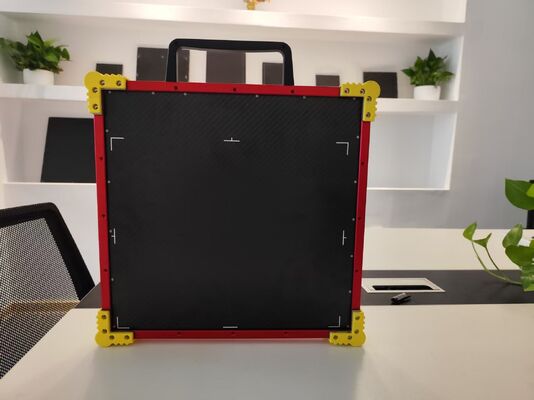

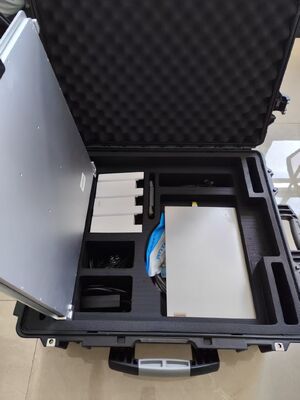

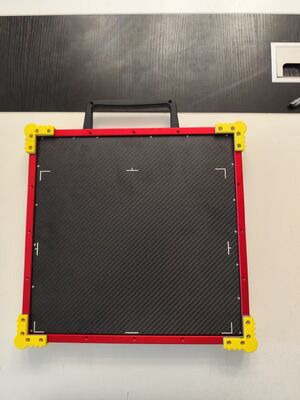

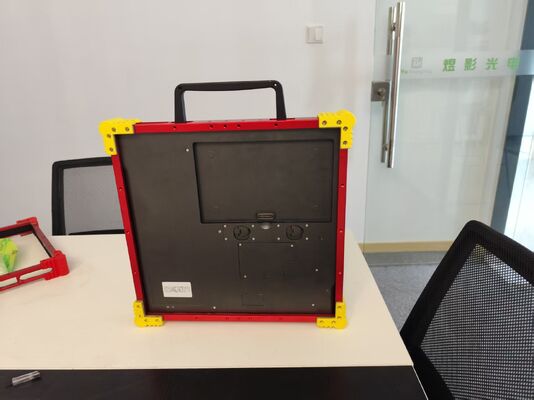

DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)

DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)
DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si) DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si) DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si) DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)

Large Image :  DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: H4343DA
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: in carton box
Delivery Time: 7-10 days after payment
Supply Ability: 50 pcs per month
Contact Now

DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)

Description
Product Name: DR Panel Model: H4343DA
Adapter In: AC 100-240V,50-60Hz Active Area: 430 X 430 Mm
Highlight:

DR panel wireless detector

,

Non-destructive testing amorphous silicon detector

,

Lightweight wireless NDT equipment

DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)


Sensor

Receptor Type a-Si
Scintillator Gos / CsI:TI
Active Area 430 x 430 mm
Resolution 3072x 3072
Pixel Pitch 139 μm


Power Supply & Battery

Adapter In  AC 100-240V,50-60Hz
Adapter Out DC 24V,2.7A
Power Dissipation <20 W


Image Quality

Limiting Resolution 3.5 LP/mm
Energy Range 40-160 KV
Dynamic Range ≥84 dB
Sensitivity   ≥0.54 LSB/nGy
Ghos <1% 1st frame
DQE            42% @(1 LP/mm)
28% @(2 LP/mm)
MTF            68% @(1 LP/mm)
38% @(2 LP/mm)
20% @(3 LP/mm)


Electricals and interface
A/D Conversion              16 bits

Data Interface                Gigabit Ethernet

Frame rate                     1x1 4fps/2x2 15fps/3x3 25fps

Exposure Control            Free Run/SYNC Acquire



Mechanical
Dimension                       460 × 460 × 14.8 mm
Weight                             3.8kg

Material                           Aluminum and magnesium alloys

Front Panel                     Carbon fiber



Enviromental

Temperature                   10-35°C (operating)；-10~50°C (storage)

Humidity                          30-70% RH (non-condensing)

Ingress Protection                 IP51

DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)
