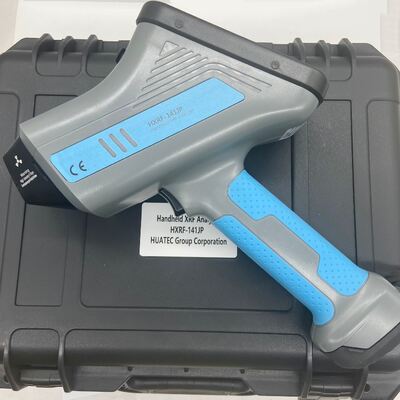

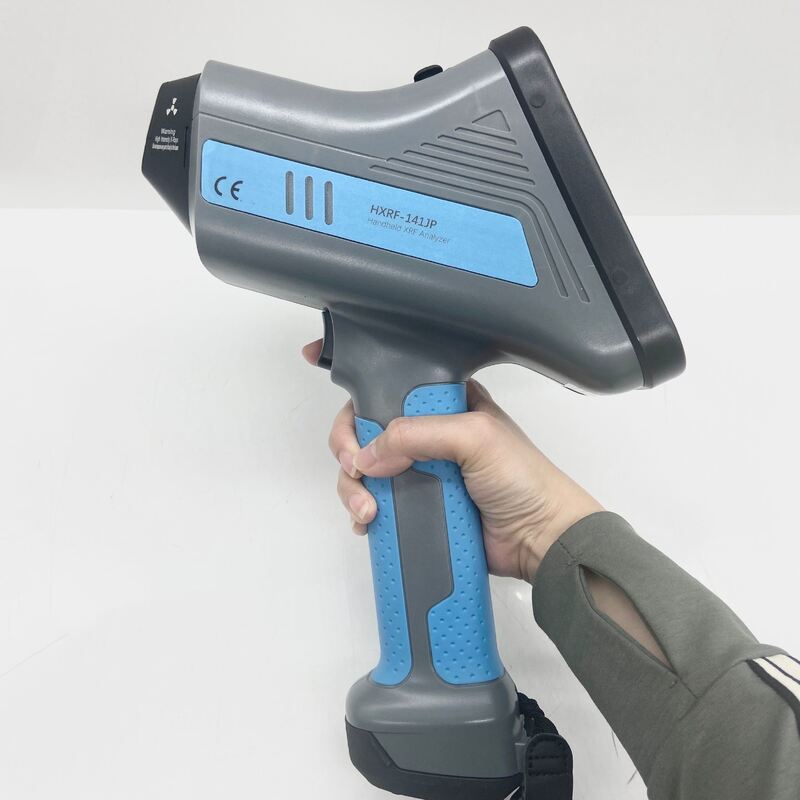

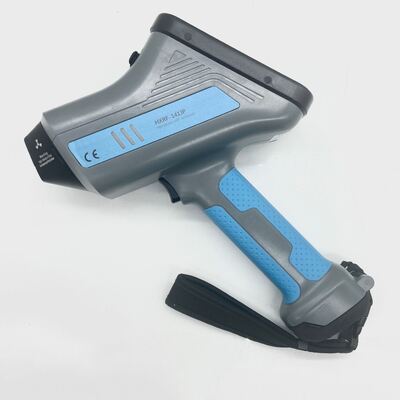

HXRF-141JP PMI Alloy Analyzer and Plating Thickness Measurement With Camera

HXRF-140JP Handheld X-ray fluorescence alloy composition analyzer

Detector

High performance Si-pin detection component

Excitation source

45KV/200uA- Integrated Micro X-ray Tube and High Voltage Source with Silver/Tungsten Target End Windows

Element detection range

PMI mode:Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, Re, Pb, and Bi, total 25 elements.

Plating mode: copper silver plating, copper tin plating, etc

Detection object

solid

Analytical methods

Direct reading analysis method+basic parameter method(FP)

Software

Remote control systems, both Windows based PC and Android based mobile devices, can operate instruments through software to achieve data synchronization across multiple platforms (instrument, PC, mobile, cloud). The software has functions such as data analysis, spectrum display, report printing, and the instrument client has the ability to send analysis reports through email；

 Size

 245mm(L)X91mm(W)X319mm(H)

Weight

≤1.75KG(Including battery)

Microcomputer display system

1. Semi transparent and semi reflective industrial grade customized touch screen ≥ 5 inches

2. Resolution 1080 * 720

Source

1. Rechargeable lithium battery, standard configuration 6800mAh, voltage: 7.2V; Sustainable work for up to 12 hours;

2. The instrument has a built-in battery level display;

Charging mode

1,Universal adapter charging power supply

Collimator, filter

1. Special radiation resistant material collimator, inner diameter 3MM

2. No filter, saves switching time, and software deducts background interference

Front end testing window

*≤9mm*5mmWaist shaped window

Camera

Equipped with a built-in 5 megapixel high-definition camera function, it can take photos of the tested object for easy management

Test report sending method

E-mail Send, Bluetooth synchronous transmission, software synchronous transmission

Data transmission method

Wifi,Bluetooth

Maintenance method

Remote software upgrade and diagnosis, on-site maintenance, diagnosis

User management

Multi level user management function (can create multiple accounts, achieve corresponding person numbers, facilitate management and data traceability)

Protective cover

The instrument is equipped with a protective cover, which has radiation and damage protection functions (not standard)

Material sensing and instrument status prompt

1. The body has a material sensing function, which can intelligently identify whether there is a test object in front of it.

2. Intelligent status display light, which displays three working states through the intelligent status display light (red flashing indicates being detected, green flashing indicates there is no object to be tested in front, and green long light indicates that there is an object to be tested in front)

Operating environment temperature and humidity

humidity≤90%

-20℃ - +60℃

Safety

*1. Instrument side measurement value ≤ 0.2 μ Sv/h (after deducting background)

Note: The supplier must provide a copy of the "Handheld X-ray Analyzer (Leakage) Report" issued by a nationally authorized legal metrology institution or a national level testing center in the response document as evidence.

2. Multiple safety protection, no radiation testing;

3. The radiation level during work is much lower than international safety standards, and it has the function of sample free aerial testing and automatic shutdown of X-ray tubes.

Appendix

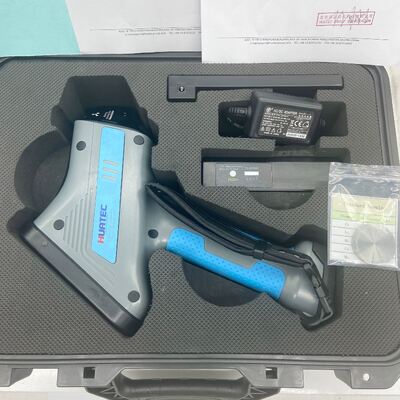

Standard configuration:

1. The three defense military protective box has waterproof, dustproof, and shock-absorbing functions *1

2. Rechargeable lithium battery * 2

3. Universal battery charging adapter * 1

4. English manual *1

5. Calibration certificate *1

6. Standard calibration block *1

Optional accessories: base mounted test stand, protective cover
