Portable AC Magnetic Yoke Flaw Detector HCDX-Q1 series

Portable AC Magnetic Yoke Flaw Detector HCDX-Q1 series
Portable AC Magnetic Yoke Flaw Detector HCDX-Q1 series Portable AC Magnetic Yoke Flaw Detector HCDX-Q1 series

Large Image :  Portable AC Magnetic Yoke Flaw Detector HCDX-Q1 series

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: HCDX-Q1 series
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: in carton box
Delivery Time: 5~7 days after payment
Payment Terms: L/C,T/T
Supply Ability: 50 pcs per month
Contact Now

Portable AC Magnetic Yoke Flaw Detector HCDX-Q1 series

Description
Product Name: AC Magnetic Yoke Flaw Detector Power Supply: AC220V
Lifting Force: AC≥45N DC≥177N Probe Pole Distance: 40mm-200mm
Highlight:

Portable AC magnetic yoke flaw detector

,

HCDX-Q1 series flaw detector

,

Non-destructive testing equipment with warranty

Portable AC Magnetic Yoke Flaw Detector HCDX-Q1 series

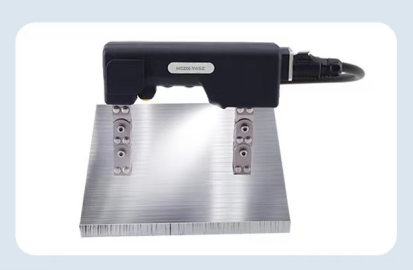

HCDX-Q1 Portable AC Magnetic Yoke Flaw Detector with White Light

HCDX-Q1DC Portable AC&DC fluorescent magnetic yoke Flaw detector with White light and UV light

HCDX-Q1Z Portable AC fluorescent magnetic Yoke Flaw detector with White light and UV light


1. Product introduction

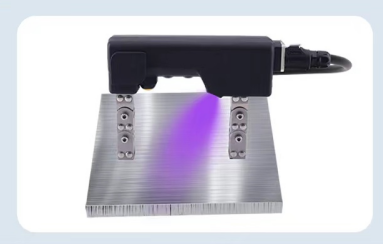

• The probe can choose two lighting modes: ultraviolet lamp and white lamp.

• The probe weight is only 2.0kg, suitable for long time magnetic particle detection work.

• Working mode: AC and DC (for model HCDX-Q1DC)

• AC operation: The probe is connected to AC220V power supply for flaw detection.

• DC operation: The probe can be connected to the battery for DC operation.



2. Technical parameters

Sensitivity A1 15/100 standard test piece; Clear display of defect
HCDX-Q1 AC220V
HCDX-Q1DC AC220V and DC12V
HCDX-Q1Z AC220V
Probe pole distance 40mm-200mm
Lifting force AC≥45N DC≥177N
Illumination of white lamp ≥1450Lux (only when connected to AC)
UV lamp intensity ≥5000uw/cm²(HCDX-Q1DC and HCDX-Q1Z has this function)
Machine size 210mm (length) *48mm (width) *150mm (height)
Yoke weight 2.0 kg



3. Configuration

HCDX-Q1 configuration

• Host with type D yoke probe 1 unit

• White lamp 1 pc

• AC power cable 1 pc

• Instruction manual 1 pc

• Calibration certificate 1 pc

• Instrument case 1 pc

HCDX-Q1DC configuration

• Host with type D yoke probe 1 unit

• White lamp 1 pc

• UV lamp 1 pc

• AC power cable 1 pc

• Power adapter 1 pc

• Lead acid battery 1 pc

• DC power cable 1 pc

• Battery pack 1pc

• Instruction manual 1 pc

• Calibration certificate 1 pc

• Instrument case 1 pc

HCDX-Q1Z configuration

• Host with type D yoke probe 1 unit

• White lamp 1 pc

• UV lamp 1 pc

• AC power cable 1 pc

• Instruction manual 1 pc

• Calibration certificate 1 pc

• Instrument case 1 pc

Portable AC Magnetic Yoke Flaw Detector HCDX-Q1 series
