DG-3101S Adjustable UV Headlamp with 365 nm UV-A LED and 10000μW/cm² Intensity for Hands-Free Inspection

DG-3101S Adjustable UV Headlamp with 365 nm UV-A LED and 10000μW/cm² Intensity for Hands-Free Inspection
DG-3101S Adjustable UV Headlamp with 365 nm UV-A LED and 10000μW/cm² Intensity for Hands-Free Inspection DG-3101S Adjustable UV Headlamp with 365 nm UV-A LED and 10000μW/cm² Intensity for Hands-Free Inspection DG-3101S Adjustable UV Headlamp with 365 nm UV-A LED and 10000μW/cm² Intensity for Hands-Free Inspection

Large Image :  DG-3101S Adjustable UV Headlamp with 365 nm UV-A LED and 10000μW/cm² Intensity for Hands-Free Inspection

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: HCDX-Q1 series
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: in carton box
Delivery Time: 5~7 days after payment
Payment Terms: L/C,T/T
Supply Ability: 50 pcs per month
Contact Now

DG-3101S Adjustable UV Headlamp with 365 nm UV-A LED and 10000μW/cm² Intensity for Hands-Free Inspection

Description
Product Name: Adjustable UV Headlamp Peak Wavelength: 365-370nm
Ultraviolet Intensity: 10000μW/cm At 38cm UV LED Quantity: 1× 5W 365nm UV LED
Power: 2pcs Of 18650 Lithium Battery, 4400mAh
Highlight:

365 nm UV-A LED UV Headlamp

,

10000μW/cm² Intensity UV Helmet Light

,

90° Adjustable Head Adjustable UV Light

DG-3101S Adjustable UV Headlamp With Powerful UV-A (365 nm) LED Lamp
Product Overview

A new palm-sized, hands-free light source that can be worn on the head with a UV helmet type black light that frees the user's hands during inspections. This helmet-type black lamp is an ideal test tool for fluorescent magnetic particle and penetration inspection, mine inspection, and similar applications.

Key Features
  • Equipped with powerful UV-A (365 nm) LED lamp design
  • On/off button positioned on the back to prevent accidental switching
  • Constant current drive line maintains UV intensity constant, even with insufficient battery capacity
  • Head can be adjusted 90 degrees up and down for optimal positioning
  • LED average lifespan: 30,000 hours
Technical Specifications
Parameter Specification
Peak wavelength 365-370nm
Ultraviolet intensity 10000μW/cm² at 38cm distance
UV LED quantity 1× 5W 365nm UV LED
Power 2× 18650 Lithium batteries, 4400mAh
Usage time: 3.5 hours
Irradiated area Ø50mm at 38cm distance
Dimensions & Weight 40×38mm, 200g (without accessories)
Applications
  • Refrigerant leak detection
  • Penetration testing and fluorescence detection
  • Engine oil leak detection
  • Forensics fingerprints and blood observations
  • Fluorescence observation of ore
  • Biopolymers fluorescence observation
Standard Configuration

Host, one pair of LUV-10 glasses, charger, manual, certificate, warranty card

Product Images

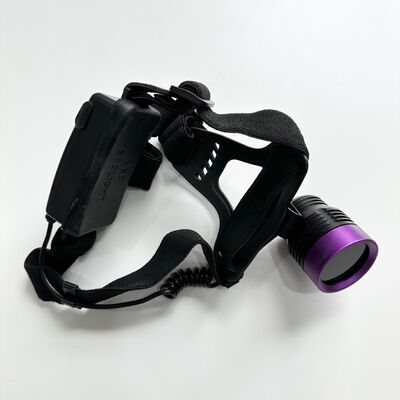

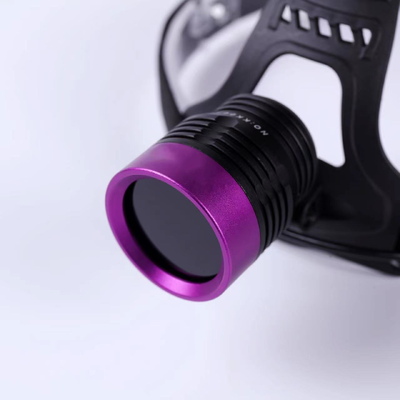

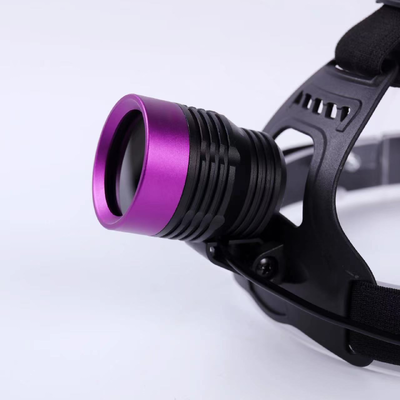

DG-3101S UV Headlamp front view DG-3101S UV Headlamp side view DG-3101S UV Headlamp in use
