HUATEC TG-8812 Advanced Ultrasonic Thickness Gauge with 0.55-500mm Range High Precision and Bluetooth

HUATEC TG-8812 Advanced Ultrasonic Thickness Gauge with 0.55-500mm Range High Precision and Bluetooth
HUATEC TG-8812 Advanced Ultrasonic Thickness Gauge with 0.55-500mm Range High Precision and Bluetooth HUATEC TG-8812 Advanced Ultrasonic Thickness Gauge with 0.55-500mm Range High Precision and Bluetooth

Large Image :  HUATEC TG-8812 Advanced Ultrasonic Thickness Gauge with 0.55-500mm Range High Precision and Bluetooth

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: TG-8812
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

HUATEC TG-8812 Advanced Ultrasonic Thickness Gauge with 0.55-500mm Range High Precision and Bluetooth

Description
TG-8812N: 0.9〜300mm TG-8812C: 0.75〜400mm
TG-8812L: 0.55〜500mm TG-8812D: 0.75〜500mm
Highlight:

0.55-500mm measuring range Ultrasonic thickness gauge

,

High precision measurement Thickness gauge

,

Bluetooth data transmission Non-destructive testing equipment

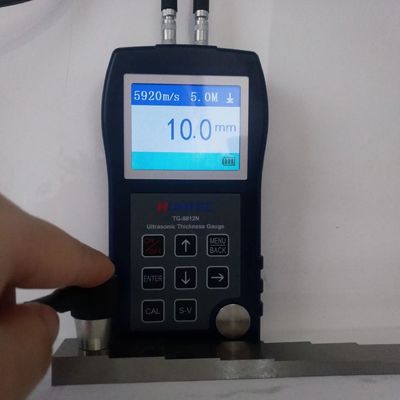

HUATEC TG-8812 New Series Advanced Ultrasonic Thickness Gauge
The HUATEC TG-8812 ultrasonic thickness gauge is a high-precision instrument utilizing ultrasonic measurement principles. Designed with high-speed processors and highly integrated chips, it enables portable, non-destructive, fast, and accurate measurement of material thickness and sound velocity.
Product Overview
Suitable for measuring thickness of various materials where ultrasonic waves transmit at constant speed, including steel, metals, glass, ABS, plastics, PVC, ductile iron, and more.
Technical Specifications
MODEL TG-8812N TG-8812C TG-8812L TG-8812D
Measuring Range (Standard) 0.9-300mm 0.75-400mm 0.55-500mm 0.75-500mm
Standard Mode 0.9-300mm
Probe: 5PΦ10mm		 0.75-400mm
Probe: 5PΦ10mm		 0.75-500mm
Probe: 5PΦ10mm		 0.75-500mm
Probe: 5PΦ10mm
Ultra-thin Mode / / (0.55-1)mm /
Penetration Mode (Echo-Echo) / / / 2.5-25mm (steel)
Microcrystal Probe 1-50mm
Probe: 7.5PΦ6mm		 0.75-100mm
Probe: 7.5PΦ6mm		 0.75-100mm
Probe: 7.5PΦ6mm		 0.75-100mm
Probe: 7.5PΦ6mm
High Temperature Probe 2-100mm
(Probe: ZW5P)		 1.5-100mm
(Probe: ZW5P)		 1.5-200mm
(Probe: ZW5P)		 1.5-200mm
(Probe: ZW5P)
Display Resolution 0.1mm 0.01mm 0.01mm 0.01mm
Measurement Resolution ±(1%H+0.1)mm ±(1%H+0.1)mm ±(0.5%H+0.05)mm ±(0.5%H+0.05)mm
Material Velocity: 1000-9999 m/s
Bandwidth: 1MHz-10MHz (-3dB)
Power Supply: 4.5VDC (three AAA batteries)
Screen: TFT Color screen 2.3 inch
Size: 130(L)×70(W)×25(H) mm
Weight: 125g (excluding batteries)
Work Temperature: -10 to +50℃ (with high temperature probe, up to 300℃)
Work Humidity: 20% to 90% RH
Key Features
  • Suitable for thickness measurement of various materials: metals, glass, plastics, and other materials
  • Compact and exquisite design with 2.3-inch color screen display, easy to carry and suitable for on-site inspection
  • Measurement modes: standard mode / ultra-thin mode (for high-precision large range type)
  • Measurement modes: standard mode / penetration coating mode (special for penetrating type)
  • High measurement accuracy, wide measurement range, single probe full range coverage
  • English bilingual version
  • Bluetooth interconnection data transmission function (applicable to TG-8812L and TG-8812D models)
  • Calibration options: standard block calibration, sound velocity calibration, sound velocity calculation by known thickness
  • Manual and automatic shutdown options
  • Built-in sound velocity for 7 commonly used materials, editable for user convenience
  • Mass data storage: 10 groups with 200 data points each, total 2000 data points storage capacity
  • Large capacity storage with view and delete operations
  • Multiple probe options including high temperature probe for measurements up to 300℃

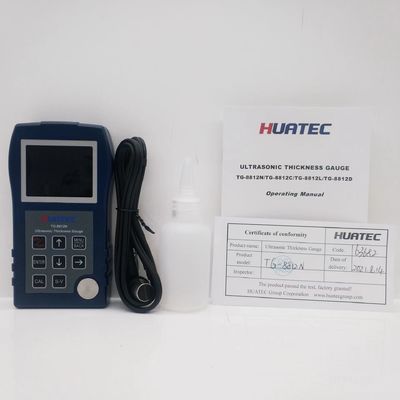

Standard Package Contents
NO Item Name Quantity
1 Thickness Gauge One
2 Standard Probe (5P, φ10) One
3 Coupling Agent (50ml) One
4 Battery Three AAA batteries
5 Manual One
6 Qualification Certificate One
7 Instrument Package One
Sound Velocities of Various Materials (Longitudinal Wave Velocity)
Material Velocity (m/s) Material Velocity (m/s)
Water (20℃) 1480 Stainless Steel (304) 5663
Glycerin 1920 Brass, Yellow 4640
Water-glass 2350 Copper 4700
Nylon 2620 Glass 5440
Acetic Acid Resin 2670 Nickel 5630
Acrylic Acid Resin 2730 Steel 330 5600
Tin 3230 Steel 4330 5850
Gold 3240 Iron, Steel 5920
Phosphor Bronze 3530 Titanium 6070
Silver 3600 Magnesium 6310
Zinc 4170 Aluminum 6320
