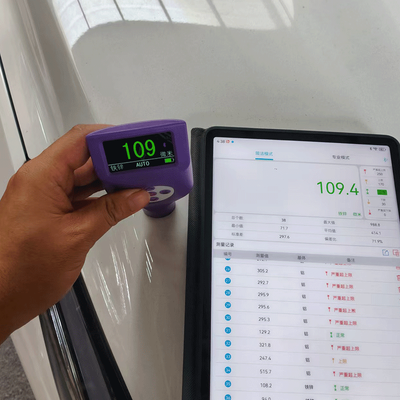

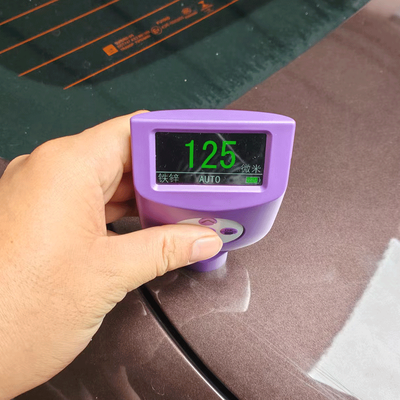

TG-1670 Integrated Coating Thickness Gauge with 0-5000μm Measuring Range and Bluetooth Transmission Using Magnetic Induction and Eddy Current

TG-1670 Integrated Coating Thickness Gauge with 0-5000μm Measuring Range and Bluetooth Transmission Using Magnetic Induction and Eddy Current
TG-1670 Integrated Coating Thickness Gauge with 0-5000μm Measuring Range and Bluetooth Transmission Using Magnetic Induction and Eddy Current TG-1670 Integrated Coating Thickness Gauge with 0-5000μm Measuring Range and Bluetooth Transmission Using Magnetic Induction and Eddy Current

Large Image :  TG-1670 Integrated Coating Thickness Gauge with 0-5000μm Measuring Range and Bluetooth Transmission Using Magnetic Induction and Eddy Current

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: TG-1670
Contact Now

TG-1670 Integrated Coating Thickness Gauge with 0-5000μm Measuring Range and Bluetooth Transmission Using Magnetic Induction and Eddy Current

Description
Receptor Type: TFT / PD Matrix Panel
Highlight:

0-5000μm Measuring Range Coating Thickness Gauge

,

Magnetic Induction and Eddy Current Thickness Gauge

,

Bluetooth Transmission Integrated Thickness Gauge

TG-1670 Integrated Coating Thickness Gauge

The TG-1670 Integrated Coating Thickness Gauge is a portable instrument designed for measuring coating thickness on both iron and aluminum substrates. Utilizing magnetic induction and eddy current automatic conversion technology, it automatically identifies non-metallic shells, iron powder putty layers, and iron galvanized layers.

This gauge provides quick, non-destructive, and precise measurements of coating and plating layers, making it suitable for both laboratory testing and engineering field applications. Widely used in manufacturing, metal processing, chemical industries, and commodity inspection, it is an essential instrument for material protection and quality control.

Product Features
  • Extra large measuring range: 0-5000μm
  • Dual measurement methods: Hall and Eddy Current for comprehensive substrate compatibility
  • Three measuring principles: Hall, Eddy Current, and Automatic mode
  • Single and continuous measurement modes
  • Three viewing modes: Normal, Difference, and Maximum Capture
  • Data recording function with 99 measurement value groups
  • Five-level screen brightness adjustment for various lighting conditions
  • Bluetooth transmission capability
Technical Specifications
Parameter Specification
Resolution Auto (0.1μm/1μm/0.01mm)
Measurement Range 0.0-5000μm
Measurement Accuracy ≤±(3%H+2μm), H is standard value
Measurement Interval 0.2s
Substrate Indication Iron, aluminium, iron zinc, iron powder putty
Minimum Measuring Area Ø = 25mm
Minimum Curvature Radius Convex: 5mm / Concave: 25mm
Minimum Substrate Thickness Fe: 0.2mm / NFe: 0.05mm
Probe Type Built-in one piece
Measuring Principle Iron: Hall effect / Aluminium: Eddy current
Probe Tip Zirconium oxide
View Mode Normal/Maximum/Difference
Measurement Mode Continuous / Single
Memory Automatic / manual
Display 320×170 IPS LCD display screen
Power Supply AAA alkaline battery
System Language Chinese / English
Host Size 112mm×63mm×29mm
Weight (including battery) 85g
Operating Temperature -20℃ to 50℃
Storage Temperature -30℃ to 60℃
Standard Configuration
Component Quantity
Host 1
Iron based test block 1
Aluminum based test block 1
AAA alkaline battery 2
Calibration block 1
Manual 1
Certificates of Conformity & Warranty Card 1
