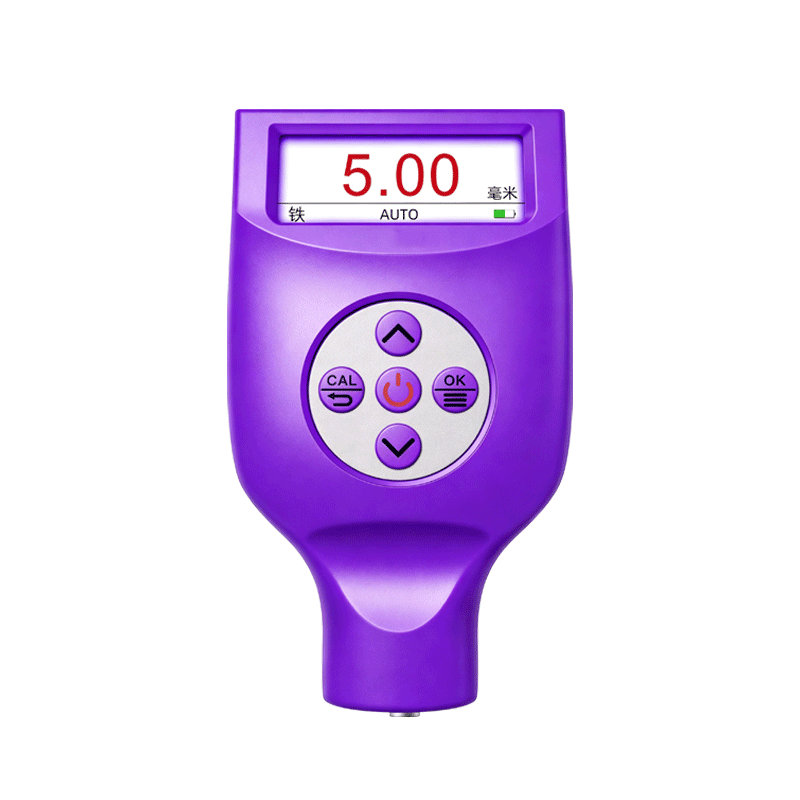

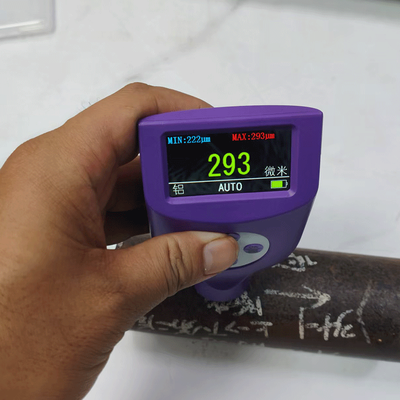

TG-1670 Dry Film Coating Thickness Gauge for Both Iron and Aluminium

TG-1670 Dry Film  Coating Thickness Gauge for Both Iron and Aluminium

TG-1670 Integrated Coating Thickness Gauge is a portable coating thickness gauge for both iron and aluminium, adopting magnetic induction and eddy current automatic conversion technology. It can automatically identify non-metallic shell, iron powder putty layer and iron galvanised layer. It can quickly, non-destructively and precisely measure the thickness of coating and plating layers, and can be used in both test labs and engineering sites. This instrument is widely used in manufacturing industry, metal processing industry, chemical industry, commodity inspection and other testing fields, is a necessary instrument for material protection.

Basic Parameters

Product Features

1. Extra large measuring range: 0-5000μm.

2. Uses both Hall and Eddy Current thickness measurement methods. It can non-destructively measure the thickness of non-magnetic coverings on magnetic metal substrates and the thickness of non-conductive coverings on non-magnetic metal substrates.

3. The instrument supports three measuring principles: Hall, Eddy Current and Automatic.

4. The instrument supports setting single and continuous measurement.

5. There are three viewing modes: Normal, Difference and Maximum Capture.

6. The instrument has a data recording function, which can record 99 groups of measurement values, and can be set in automatic and manual modes.

7. Set the screen brightness with five levels of energy saving, eye protection, standard, outdoor and high brightness. To adapt to the working environment under different light conditions.

8. The instrument has Bluetooth transmission function.

Standard Configurations
