Digital Portable Eddy Current Conductivity Tester with 60 kHz Sine Wave 6.9~110%IACS Range and ±0.1%IACS Accuracy

Large Image : Digital Portable Eddy Current Conductivity Tester with 60 kHz Sine Wave 6.9~110%IACS Range and ±0.1%IACS Accuracy

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	HEC-101

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

Contact Now

Digital Portable Eddy Current Conductivity Tester with 60 kHz Sine Wave 6.9~110%IACS Range and ±0.1%IACS Accuracy

Description

Operating Frequencies:

60 KHz Sine Wave

Highlight:

60 kHz Sine wave Eddy Current Conductivity Tester

6.9~110%IACS Electrical Conductivity Meter

±0.1%IACS~±0.3%IACS Non-Destructive Testing Equipment

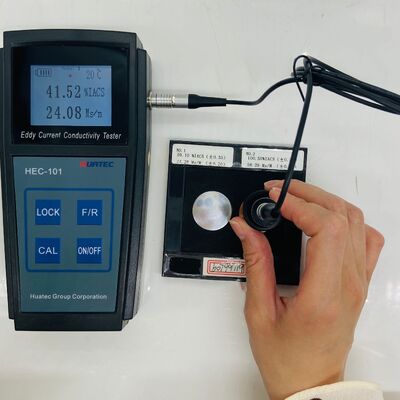

Digital Portable Eddy Current Electrical Conductivity Tester HEC-101

Product Overview

The HEC-101/102 Digital Portable Eddy Current Electrical Conductivity Testers are designed for quick and convenient measurement of material properties, including material separation, quality control, and material state verification.

Operating at 60 KHz~120 KHz (aviation industry standard), these testers provide readings in both %IACS and MS/m units. They simultaneously measure electrical conductivity and resistivity with intelligent temperature and lift-off compensation to ensure testing accuracy. The large display with backlight illumination allows for easy reading even in low-light conditions.

Featuring high-performance batteries for extended operation and compact, portable design, these testers allow field probe replacement without returning to the factory for calibration. The HEC-102 model can store up to 1000 measurements and connect to a PC via USB for report generation.

Applications

Absolute measurement of electrical conductivity of nearly all non-ferrous metals (Ti - Ag)
Monitoring heat treatment processes, strength, and hardness of aluminum alloy in aerospace and automotive industries
Testing conductivity of non-oxidized aluminum
Measuring purity of non-ferrous metals
Testing resistivity of conductive materials
Analyzing thermal properties of materials

Technical Parameters

Parameter	HEC-102	HEC-101
Conductivity Range	6.9~110%IACS (4.0~64MS/m) - Can be customized per client requirements
Operating Frequencies	60 kHz or 120 kHz Sine wave	60 kHz Sine wave
Accuracy	±0.1%IACS~±0.3%IACS
Resolution	Conductivity: 0.01% IACS(MS/m) Resistivity: 0.000001Ω*(mm)²/m	Conductivity: 0.01% IACS(MS/m)
Probe	12 mm diameter for 60 kHz; 8 mm probe at 60 kHz (optional)	12 mm diameter for 60 kHz
Dimensions (H × W × D)	180 × 80 × 30 mm	180 × 90 × 40 mm
Weight	0.26 kg	0.30 kg
Memory	Data Logger Memory: Up to 1000 readings with USB connectivity	Maintains data but cannot store readings
Test Environment	0 to 95% relative humidity, 0°C to +50°C
Instrument Case	Toolbox: Anti-impact, waterproof polyester

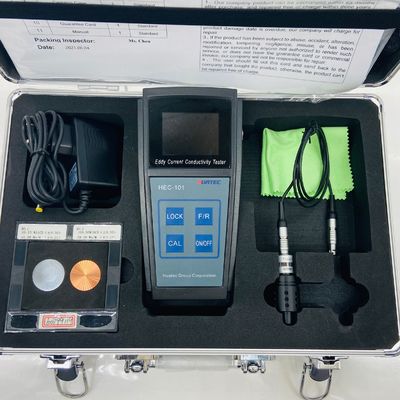

Standard Delivery

Item	Quantity
Main unit	1
Probe 12mm	1
Probe cable	1
Calibration block Al & Cu	1 each
Probe sheath	1
Carrying case	1
Manual	1
Cleaning cloth	1
PC software with cable (HEC-102 only)	1

Optional Accessories

Probe diameter 12mm • Probe diameter 8mm • Calibration block • Probe cable
