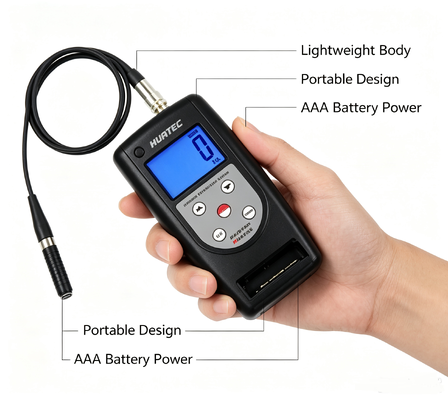

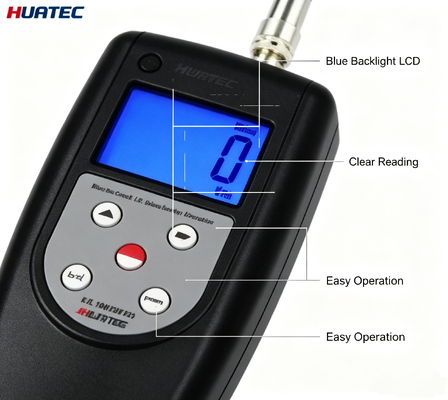

TG-2200CN High Accuracy Eddy Current Thickness Meter Single Continuous Mode for Anodizing Paint Enamel Coating Test
Applications:
The TG-2200CN measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.
|
Operating Principle
|
Eddy Current (NF)
|
|
Measuring Range
|
0~200 um / 0~8 mil
|
|
Resolution
|
0.1 um
|
|
Min. Radius Workpiece
|
convex 2 mm / concave 4 mm
|
|
Min. Measuring Area
|
2 mm
|
|
Min. Sample Thickness
|
0.1 mm
|
|
Accuracy
|
± 1~3%n or ± 2.5 um
|
|
Auto Power Off
|
|
|
Metric / Imperial
|
Convertible
|
|
Battery Indicator
|
Low Battery Indicator
|
|
Operating Conditions
|
Temp. 0~40 °C, Humidity: 10~90 %RH
|
|
Power Supply
|
4 x 1.5 V AAA (UM-4) Battery
|
|
Dimensions
|
140 x 72 x 34 mm ( 5.5 x 2.8 x 1.3 inch )
|
|
Weight
|
215 g (Not Including Batteries)
|
Features Details Accessories:
* Specially for the thickness measurement of coating on small work piece.
* Measuring methods: eddy current (N).
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Auto memory of calibration value, and auto recognize the substrate.
* Operation process have buzzing reminder, while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth data output” choice.
* Separate Type can provide several type probe, measure can be more flexibility.
Standard Accessories:
1. Main Unit
2. Probe (NF Type)
3. Calibration Base Set (NF Type)
4. Calibration Foils (1 set, 4 pieces)
5. Carrying Case
6. Operation Manual
Optional accessories:
1. USB, RS-232C data cable with software
2. Bluetooth data out put with software
