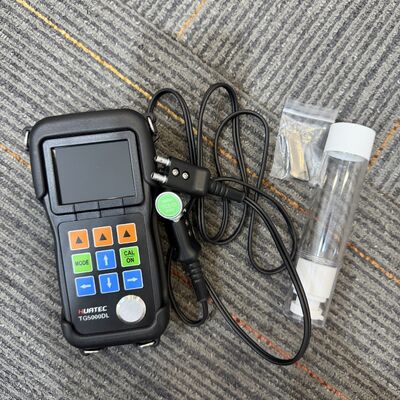

TG5000DL Ultrasonic Thickness Gauge Live A-Scan Time-based B-Scan Through Coating NDT Thickness Measuring Instrument

Display Type

2.4" color OLED, 320 X 240 pixels, contrast 10,000:1

Operating Principle

Pulse echo with dual element transducers

Measuring Range

0.50mm to 508mm(0.02" to 20.00"), depending on material, probe  and surface condition

Measuring Resolution

Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")

Units

Inch or Millimeter

Rectify Modes

RF+, RF-, HALF+, HALF-, FULL

Display Mode

Normal, Minimum / Maximum capture, DIFF/RR%, A-Scan, B-Scan

V-Path Correction

Automatic

Update Rate

Selectable 4Hz, 8Hz, 16Hz

Material Velocity Range

500 to 9999m/s (0.0197 to 0.3937in/us)

Languages

English

Alarm Settings

Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm

Power Requirements

2 AA size batteries

Operating Time

Approximately 40 hours

Instrument Shut-off

Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity

Operating Temperature

-10°C to +50°C (+10°F to +120°F)

Size

153mm × 76mm ×37mm(H ×W ×D)

Weight

280g including batteries

NAME

NUMBER

THICKNESS GAUGE

1

PROBE

1

ALKALINE BATTERY

2

COUPLANT

1

CARRYING CASE

1

OPERATING MANUAL

1

USB CABLE

1(ONLY TG-5000DL)

SOFTWARE CD

1(ONLY TG-5000DL)

HIGH-TEMPERATURE PROBE

CAST IRON PROBE

SMALL PROBE

MINI PROBE

PROBE CABLE

STEPPED CALIBERATION BLOCK

RUBBER SHEATH

STORAGE OPTION(ONLY TG-5000)
