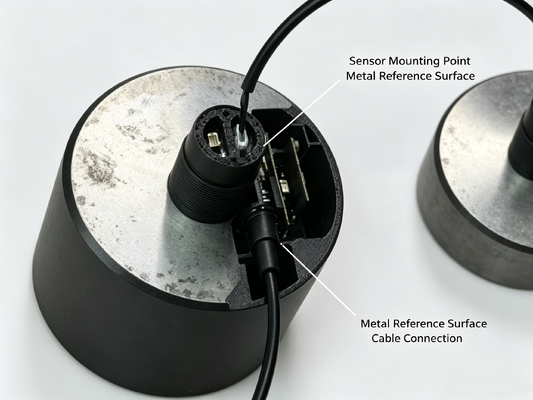

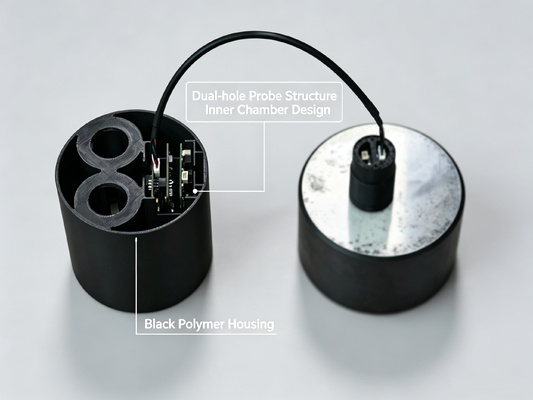

TG-EM30 Electromagnetic Ultrasonic Thickness Monitoring System No Couplant Required RS485 LORA Wireless Online Corrosion Thickness Detector

Sampling

100MSPS

Bandwidth

2.5MHz～6MHz

Launch

± 600V_400Hz_125ns

Gain

Automatic 0 to 96 dB, step size 1 dB

Measurement accuracy

±0.01mm

Sound velocity range

400～9999 m/s

Effective range

5～50mm

Average grade

L,M,H Three adjustable settings

Ejection distance

3mm (aluminum), 2mm (carbon steel), 1mm (stainless steel)

Measurement type

Aluminum, copper, iron, carbon steel, cast steel, alloy steel, stainless steel, titanium alloy and other metal materials

Measurement channel

General

Measurement mode

Single echo (I-E), double echo (E-E)

Search mode

Frontier - Frontier, Peak - Peak, Peak - Frontier

Auxiliary function

Automatic gain control, automatic sleep mode (for LORA version), LORA

Correction function

Gate adjustment, manual gain, sound velocity calibration, zero point calibration, high-temperature compensation

Communication

RS-485 or LORA

Power supply

Power supply area:3.5～5V

Body size

host: 78*35*26mm

Cylindrical housing: Diameter 80mm, Height 77mm

Probe size

Diameter 24mm, height 37mm

Weight

Silicone sheet: 28.5 grams

Silicone sheet + shell: 103 grams
