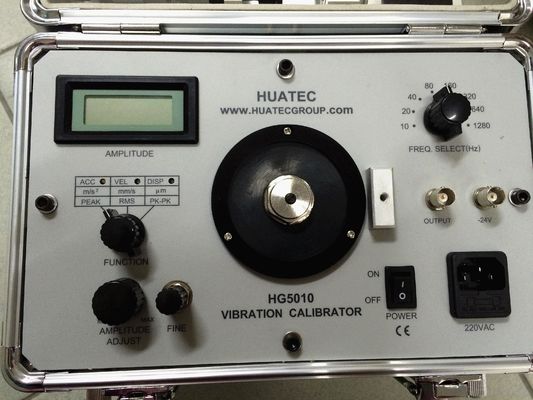

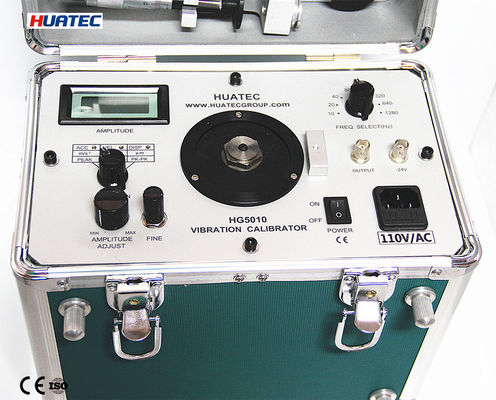

HG-5010 Vibration Calibrator with 0~4.0mm Range 5mm and 8mm Probes and 10 to 1280Hz Frequency for Vibration Testing Equipment

HG-5010 Vibration Calibrator with 0~4.0mm Range 5mm and 8mm Probes and 10 to 1280Hz Frequency for Vibration Testing Equipment
HG-5010 Vibration Calibrator with 0~4.0mm Range 5mm and 8mm Probes and 10 to 1280Hz Frequency for Vibration Testing Equipment HG-5010 Vibration Calibrator with 0~4.0mm Range 5mm and 8mm Probes and 10 to 1280Hz Frequency for Vibration Testing Equipment

Large Image :  HG-5010 Vibration Calibrator with 0~4.0mm Range 5mm and 8mm Probes and 10 to 1280Hz Frequency for Vibration Testing Equipment

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HG-5010
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

HG-5010 Vibration Calibrator with 0~4.0mm Range 5mm and 8mm Probes and 10 to 1280Hz Frequency for Vibration Testing Equipment

Description
Range: 0~4.0mm
Highlight:

0~4.0mm Range Vibration Calibrator

,

5mm and 8mm Probes Vibration Testing Equipment

,

10 to 1280Hz Frequency Vibration Measurement Device

HG-5010 Vibration Calibrator

The HG-5010 Vibration Calibrator is designed for calibrating vibration accelerometers, velocity and proximity transducers, and vibration measuring instruments. This versatile instrument generates standard sine signals at frequencies of 10, 20, 40, 80, 160, 320, 640, and 1280 Hz.

Amplitude parameters for acceleration, velocity, and displacement can be precisely defined using potentiometers and are clearly displayed on digital readouts. The calibrator supports both horizontal and vertical vibration generation.

Combining a sine signal generator, power amplifier, standard transducer, and shaker in a single compact unit, the HG-5010 offers high accuracy and easy operation. It is suitable for both laboratory and field applications.

Technical Specifications
Frequency: 10, 20, 40, 80, 160, 320, 640, 1280 Hz ±0.01%
Amplitude Accuracy:
  • Acceleration (30m/s² pk, 80Hz): 40Hz to 320Hz ±0.3dB ±1 digit
  • Acceleration (30m/s² pk, 80Hz): 20Hz to 640Hz ±0.5dB ±1 digit
  • Velocity (25mm/sec pk, 80Hz): 40Hz to 320Hz ±0.5dB ±1 digit
  • Displacement (10μm pk-pk, 80Hz): 40Hz to 320Hz ±0.5dB ±1 digit
Proximity Probe Linearity: Probes: 5mm and 8mm probes, Range: 0~4.0mm
Display: 3½ digit display for acceleration, velocity, or displacement
Maximum Vibration Amplitude and Load
Wt Freq < 100g < 250g < 650g
a(m/S²) v(mm/S) d(μm) a(m/S²) v(mm/S) d(μm) a(m/S²) v(mm/S) d(μm)
10Hz2.52813003.54018004452000
20Hz1585190010601300528640
40Hz6017020003510011001235380
80Hz10014180040603201420110
160Hz7553150352570128.524
320Hz501825301015103.55
640Hz3053203.5261*
1280Hz232*100.9*50.4*
* Value not specified
Dimensions: 280 × 180 × 250 mm
Weight: 20 lb
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Humidity: 90% non-condensing
