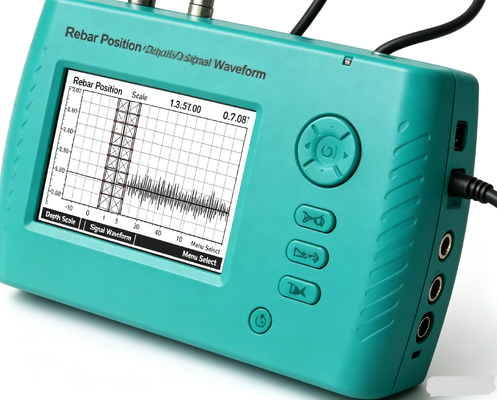

HPT50(+) Digital Reinforcement Position Tester Backlit Screen Concrete Protective Layer Thickness Gauge Building Inspection Instrument

HPT50(+) Digital Reinforcement Position Tester Backlit Screen Concrete Protective Layer Thickness Gauge Building Inspection Instrument
HPT50(+) Digital Reinforcement Position Tester Backlit Screen Concrete Protective Layer Thickness Gauge Building Inspection Instrument HPT50(+) Digital Reinforcement Position Tester Backlit Screen Concrete Protective Layer Thickness Gauge Building Inspection Instrument

Large Image :  HPT50(+) Digital Reinforcement Position Tester Backlit Screen Concrete Protective Layer Thickness Gauge Building Inspection Instrument

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HPT50(+)
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: aluminum alloy box+Outer carton packaging
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 10 Sets/Month
Contact Now

HPT50(+) Digital Reinforcement Position Tester Backlit Screen Concrete Protective Layer Thickness Gauge Building Inspection Instrument

Description
Bar Diameter Application Range(mm): Φ6 – Φ50 Maximum Value Permissible Error Of Bar Diameter: ≤±1
The First Measuring Range (mm): 6 - 90 The Second Measuring Range (mm): 7-180
Highlight:

digital reinforcement position tester

,

concrete protective layer thickness gauge

,

backlit screen building inspection instrument

HPT50(+) Digital Reinforcement Position Tester Backlit Screen Concrete Protective Layer Thickness Gauge Building Inspection Instrument


Features
·investigation depth could reach 180mm

·Single comprehensive probe. No need to replace during test.

·back-lit screen let instrument can be normal used under the condition of insufficient light

·Machine software is complete .The report could be printed automatically connecting with computer


Technical Specification


Bar diameter application range(mm)

Φ6 – Φ50

maximum value permissible error of Bar diameter

≤±1

Protective layer thickness measuring range



The first measuring range (mm)

6 - 90

The second measuring range (mm)

7-180

The maximum error of reinforced protective layer thickness test value



The first measuring range (mm)

The second measuring range (mm)



6 - 59

7 - 79

≤±1

60 - 69

80 - 119

≤±2

70 -90

120 - 180

≤±4

Standard Delivery

Optional Accessory

Main unit, Software

USB connecting cable

Power charger

Carborundum stone

Instruction manual

Warranty card

1

1

1

1

1

1

Printer

Power Charger for printer

(9V/2V)


Work environment condition
No strong alternating electromagnetic field

No corrosive gas in the air.

Avoid larger vibration and impact

Avoid the LCD panel contact with sunlight directly


Product usage

Testing concrete cover thickness

Test concrete member internal reinforcement position, rebar spacing, reinforcement position distribution

Estimation bar diameter

Detection of Cable and Plumbing pipe

HPT50(+) Digital Reinforcement Position Tester Backlit Screen Concrete Protective Layer Thickness Gauge Building Inspection Instrument

HPT50(+) Digital Reinforcement Position Tester Backlit Screen Concrete Protective Layer Thickness Gauge Building Inspection Instrument

HPT50(+) Digital Reinforcement Position Tester Backlit Screen Concrete Protective Layer Thickness Gauge Building Inspection Instrument
