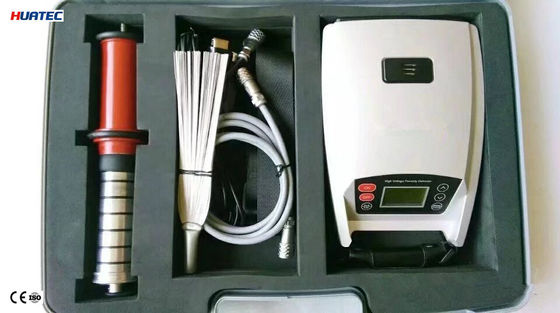

HD-105A Intelligence Pulsed High Voltage Holiday Detector with 1KV～50KV Test Voltage Range and 0.1～35mm Thickness Range

HD-105A Intelligence Pulsed High Voltage Holiday Detector with 1KV～50KV Test Voltage Range and 0.1～35mm Thickness Range
HD-105A Intelligence Pulsed High Voltage Holiday Detector with 1KV～50KV Test Voltage Range and 0.1～35mm Thickness Range HD-105A Intelligence Pulsed High Voltage Holiday Detector with 1KV～50KV Test Voltage Range and 0.1～35mm Thickness Range

Large Image :  HD-105A Intelligence Pulsed High Voltage Holiday Detector with 1KV～50KV Test Voltage Range and 0.1～35mm Thickness Range

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HD-105A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

HD-105A Intelligence Pulsed High Voltage Holiday Detector with 1KV～50KV Test Voltage Range and 0.1～35mm Thickness Range

Description
Test Voltage Range: 1KV～50KV Thickness Range: 0.1～35mm
High Voltage Output: Pulse
Highlight:

Intelligence Pulsed High Voltage Holiday Detector

,

1KV～50KV Test Voltage Range Holiday Detector

,

0.1～35mm Thickness Range Holiday Detector

HD-105A Holiday Detector - Intelligent Pulsed High Voltage Protective Coating Quality Detector
Product Overview
What is the HD-105A?

The HD-105A Holiday Detector is an intelligent pulsed high voltage protective coating quality detector. It features an anti-interference intelligent chip, anti-interference LED screen, and a brand new digital control circuit that ensures accurate high voltage output of ±(0.1KV+3% reading). The device automatically adjusts voltage values according to protective coating thickness and uses lithium battery power for field applications.

Operating Principle

When the high voltage probe passes over non-conductive coating, if the coating is too thin or the metal substrate has leaks or pinholes, the air gap is punctured and produces spark discharge during pulse high voltage application. Simultaneously, the detector records the leak count.

Applications

The HD-105A features advanced design with stable and reliable performance, making it suitable for widespread use in chemical industry, oil, rubber, and enamel applications. It is an essential tool for detecting metal anti-corrosion coating quality.

Technical Specifications
Parameter Specification
Test Voltage Range 1KV～50KV
Thickness Range 0.1～35mm
High Voltage Output Pulse
Voltage Display 3 Digit
Resolution 0.1KV
Voltage Precision ±(0.1kv+3%)
Maximum Leak Record 999 maximum
Alarm Method Headphone, buzzer and light
Shutdown Auto and Manual
Display 128*64 LED screen with backlight
Power ≤6W
Size 240mm*165mm*85mm
Battery 12V 4400mA
Working Time ≥12 hours (Max voltage)
Charging Time ≈4.5 hours
Adapter Voltage Input AC 100-240V, Output 12.6V 1A
Probe Wire Close to 1.5m
Earth Lead Wire 2*5m black/black
Fuse 1A
Safety Warnings

Special Note: Individuals with heart pacemakers or other implanted medical devices must consult their doctor before using this holiday detector.

Important: Ensure proper ground connection before operation. After use, shut down high voltage and remove the probe.

When operating the HD-105A Holiday Detector, please follow all instructions carefully to ensure safety.
