0.05-10mm 0.2-30KV Digital Display Porosity Holiday Detector Spark Detector HD-103

0.05-10mm 0.2-30KV Digital Display Porosity Holiday Detector Spark Detector HD-103
0.05-10mm 0.2-30KV Digital Display Porosity Holiday Detector Spark Detector HD-103 0.05-10mm 0.2-30KV Digital Display Porosity Holiday Detector Spark Detector HD-103

Large Image :  0.05-10mm 0.2-30KV Digital Display Porosity Holiday Detector Spark Detector HD-103

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HD-103
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

0.05-10mm 0.2-30KV Digital Display Porosity Holiday Detector Spark Detector HD-103

Description
Detector Range:: 0.05-10mm Output Voltage:: 0.2-30KV
AC Power Supply:: 220V±15% Output Voltage: 0.2-30KV
Highlight:

0.05-10mm Detector Range Porosity Holiday Detector

,

0.2-30KV Output Voltage Spark Detector

,

Digital Display HD-103

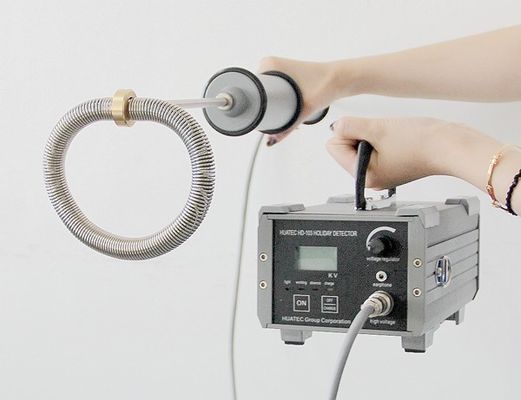

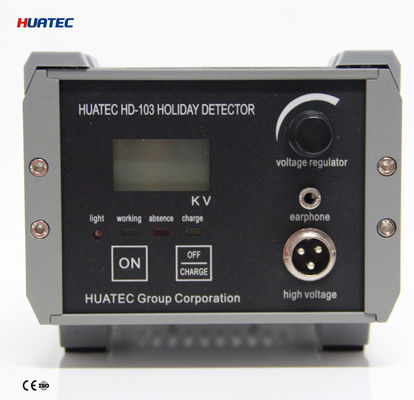

HD-103 Digital Display Porosity Holiday Detector
Professional 0.05-10mm 0.2-30KV digital display spark detector for porosity and holiday detection in coating applications.
Key Features
  • AC 220V power supply for safe and reliable operation
  • Capable of 24 hours continuous operation without interruption
  • Low power consumption with compact, lightweight design
  • High sensitivity detection with intuitive operation
  • Enhanced safety design eliminates high-voltage electrostatic phenomenon
Technical Specifications
Detection Range 0.05 - 10mm
Output Voltage 0.2 - 30KV
AC Power Supply 220V ±15%
Power Consumption 6W
Dimensions 220 * 100 * 250mm
Weight 2.5Kg
Standard Delivery Contents
  • Host Unit - 1
  • High-pressure Stick - 1
  • Ground Wire - 1
  • Fuse - 2
  • Aluminum Box - 1
  • Operation Manual - 1
  • Certificate - 1
  • Probe - 2
Optional Accessories
  • Arc brush
  • Outer spring probe
  • Inner spring probe
This industrial-grade holiday detector provides reliable porosity detection for various coating thicknesses with enhanced safety features for continuous operation.
