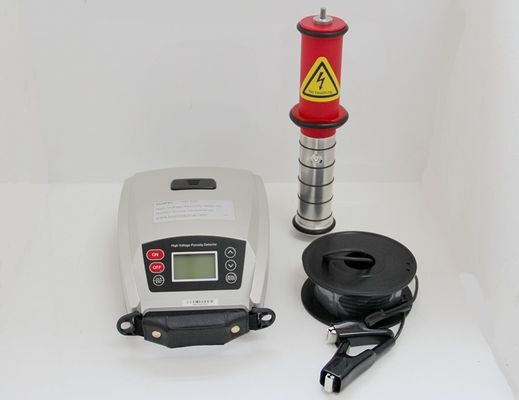

HUATEC HD-105 High voltage Pinhole Detector with 0.6KV～30KV Pulse High Voltage Output for 0.05～10mm Thickness Range

HUATEC HD-105 High voltage Pinhole Detector with 0.6KV～30KV Pulse High Voltage Output for 0.05～10mm Thickness Range
HUATEC HD-105 High voltage Pinhole Detector with 0.6KV～30KV Pulse High Voltage Output for 0.05～10mm Thickness Range HUATEC HD-105 High voltage Pinhole Detector with 0.6KV～30KV Pulse High Voltage Output for 0.05～10mm Thickness Range

Large Image :  HUATEC HD-105 High voltage Pinhole Detector with 0.6KV～30KV Pulse High Voltage Output for 0.05～10mm Thickness Range

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HD-105
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

HUATEC HD-105 High voltage Pinhole Detector with 0.6KV～30KV Pulse High Voltage Output for 0.05～10mm Thickness Range

Description
Thickness Range: 0.05～10mm
Highlight:

0.6KV～30KV High voltage Pinhole Detector

,

Pulse high voltage output Holiday Detector

,

0.05～10mm thickness range HD-105

HUATEC HD-105 High Voltage Pinhole Detector / Holiday Detector
Product Overview

The HUATEC HD-105 is an intelligent pulsed high voltage protective coating quality detector. Featuring anti-interference intelligent chips, anti-interference LED screen, and advanced digital control circuitry, it delivers precise high voltage output of ±(0.1KV+3% reading). The device automatically adjusts voltage according to coating thickness and utilizes lithium battery power for field applications.

Operating Principle

When the high voltage probe passes over non-conductive coatings, any areas with insufficient thickness, metal leakage, or pinholes will cause air gap puncture and spark discharge during pulse high voltage application. The detector simultaneously records leakage counts for quality assessment.

Applications

The HD-105 features advanced, stable, and reliable design for widespread use in chemical industry, oil, rubber, and enamel applications. It serves as an essential tool for detecting metal anti-corrosion coating quality.

Technical Specifications
Parameter Specification
Test voltage range 0.6KV～30KV
Thickness range 0.05～10mm
High voltage output Pulse
Voltage display 3 digit
Resolution 0.1KV
Voltage precision ±(0.1kv+3%)
Max leak record 999 maximum
Way of alarming Headphone buzzer and light
Shutdown Auto and Manual
Display 128*64 LED screen with backlight
Power ≤6W
Size 240mm×165mm×85mm
Battery 12V 4400mA
Working time ≥12 hours (Max voltage)
Charging time ≈4.5 hours
Voltage of adapter Input AC 100-240V, Output 12.6V 1A
Probe wire Close to 1.5m
Earth lead wire 2×5m black/black
Fuse 1A
