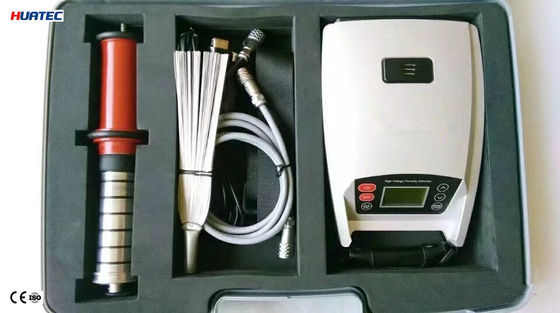

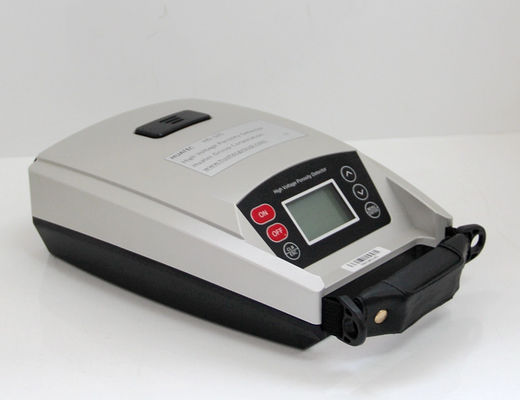

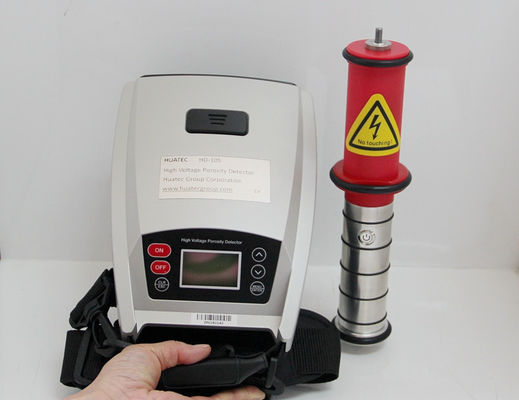

HUATEC HD-105 High Voltage Holiday Detector with 0.6KV～30KV Test Voltage Range ±(0.1kv+3%) Precision and 999 Maximum Leak Record

HUATEC HD-105 High Voltage Holiday Detector with 0.6KV～30KV Test Voltage Range ±(0.1kv+3%) Precision and 999 Maximum Leak Record
HUATEC HD-105 High Voltage Holiday Detector with 0.6KV～30KV Test Voltage Range ±(0.1kv+3%) Precision and 999 Maximum Leak Record HUATEC HD-105 High Voltage Holiday Detector with 0.6KV～30KV Test Voltage Range ±(0.1kv+3%) Precision and 999 Maximum Leak Record HUATEC HD-105 High Voltage Holiday Detector with 0.6KV～30KV Test Voltage Range ±(0.1kv+3%) Precision and 999 Maximum Leak Record

Large Image :  HUATEC HD-105 High Voltage Holiday Detector with 0.6KV～30KV Test Voltage Range ±(0.1kv+3%) Precision and 999 Maximum Leak Record

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HD-105
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

HUATEC HD-105 High Voltage Holiday Detector with 0.6KV～30KV Test Voltage Range ±(0.1kv+3%) Precision and 999 Maximum Leak Record

Description
Test Voltage Range: 0.6KV～30KV Voltage Precision: ±（0.1kv+3%）
Max Leak Record: 999 Maximum
Highlight:

0.6KV～30KV Test Voltage Range Holiday Detector

,

±(0.1kv+3%) Voltage Precision Pinhole Detector

,

999 Maximum Leak Record High Voltage Detector

HUATEC HD-105 High Voltage Pinhole Detector / Holiday Detector
Product Overview

The HUATEC HD-105 is an intelligent pulsed high voltage protective coating quality detector. Engineered with advanced anti-interference technology, it features an intelligent chip, anti-interference LED screen, and digital control circuitry for precise high voltage output of ±(0.1KV+3% reading).

  • Automatically adjusts voltage according to coating thickness
  • Lithium battery powered for field operation
  • Advanced, stable, and reliable design
Operating Principle

When the high voltage probe passes over non-conductive coatings, spark discharge occurs if the coating is too thin or contains leaks/pinholes. The detector simultaneously records leak counts during this pulsed high voltage operation.

Applications

Widely used in chemical industry, oil, rubber, and enamel applications. Essential for detecting metal anti-corrosion coating quality.

Technical Specifications
Parameter Specification
Test voltage range 0.6KV～30KV
Thickness range 0.05～10mm
High voltage output Pulse
Voltage display 3 digit
Resolution 0.1KV
Voltage precision ±(0.1kv+3%)
Max leak record 999 maximum
Way of alarming Headphone buzzer and light
Shutdown Auto and Manual
Display 128*64 LED screen with backlight
Power ≤6W
Size 240mm×165mm×85mm
Battery 12V 4400mA
Working time ≥12 hours (Max voltage)
Charging time ≈4.5 hours
Voltage of adapter Input AC 100-240V, Output 12.6V 1A
Probe wire Close to 1.5m
Earth lead wire 2×5m black/black
Fuse 1A
