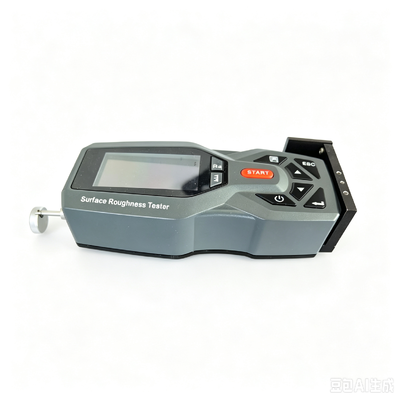

SRT-6630 Color Display High Precision Portable Roughness Instrument with Bluetooth Connection

Large Image : SRT-6630 Color Display High Precision Portable Roughness Instrument with Bluetooth Connection

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	SRT-6630

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

Contact Now

SRT-6630 Color Display High Precision Portable Roughness Instrument with Bluetooth Connection

Description

Power Supply:

Built-in 3.7VLithium Ion Battery，Charger :DC5V,800mA/3hour

Highlight:

Color Display Surface Roughness Tester

High Precision Portable Roughness Instrument

Bluetooth Connection Non Destructive Testing Equipment

SRT-6630 Color Display Surface Roughness Tester

The SRT-6630 is a portable, high-precision roughness instrument featuring real-time waveform display and Bluetooth connectivity. Designed for ease of operation, it offers comprehensive, fast measurement with high accuracy and excellent repeatability. The instrument fully implements the latest international standards for surface roughness parameters.

Key Features

Compact composite structure with electromechanical integration design
DSP chip control and data processing for high speed and low power consumption
Automatic range switching with live display
Graphical measurement display with on-site verification capability
TYPE C and Mini USB interfaces for communication and automatic control
Adjustable display orientation for left or right-hand operation
Upper and lower limit alarm settings
Single or multiple record printing capability
Compliance with multiple international standards
Comprehensive graphical parameter display
Built-in lithium-ion rechargeable battery with high capacity
Graphical battery level indicator
20 hours continuous operation
Large capacity storage for 100 raw data sets and measured profiles
Real-time clock for data recording
Automatic sleep and shutdown power-saving features
Reliable anti-motor-stuck circuit design
Chinese/English language support
Comprehensive parameter printing options
High-precision glass calibration sample with long service life
Optional accessories: curved sensor, small holes sensor, measurement stand, extension rod, printer

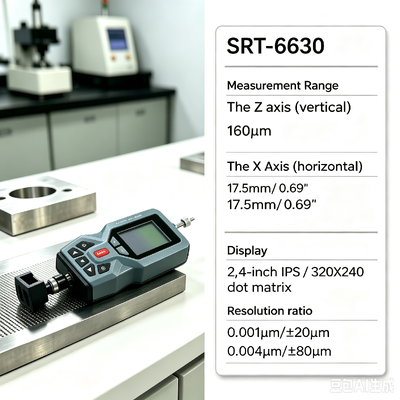

Technical Specifications

Parameter	Specification
Model	SRT-6630
Measurement Range	Z axis (vertical): 160μm X axis (horizontal): 17.5mm / 0.69"
Display	2.4-inch IPS / 320×240 dot matrix
Resolution	0.001μm/±20μm 0.004μm/±80μm
Parameters	Ra, Rz, Rq, Rt, Rmax, Rc, Rp, Rv, R3z, R3y, Rz(JIS), Ry(JIS), Rs, Rsk, Rku, Rsm, Rmr, RPc, Rk, Rpk, Rvk, Mr1, Mr2
Standards	ISO4287, ANSI B46.1, DIN4768, JIS B601
Graphics	Primary profile, Roughness profile, load curves
Filters	RC, PC-RC, Gauss, D-P
Sampling Length (lr)	0.25, 0.8, 2.5mm
Assessment Length (ln)	ln = lr × n (n = 1~5)
Sensor Principle	Displacement differential inductance
Stylus	Natural Diamond, 90°/60° angle, 2μm/5μm tip radius
Force	0.75mN/4mN
Skid	Hard alloy material, longitudinal radius 40mm
Traversing Speed	lr = 0.25: Vt = 0.135mm/s lr = 0.8: Vt = 0.5mm/s lr = 2.5: Vt = 1mm/s Return: Vt = 1mm/s
Accuracy	±(5nm + 0.1A) where A is Ra of calibration test block
Repeatability	No more than 3%
Residual Profile	No more than 0.010μm
Power Supply	Built-in 3.7V Lithium-ion battery, Charger: DC5V, 800mA/3hour
Dimensions (L×W×H)	155×63.5×46mm
Weight	Approximately 300g
Operating Environment	Temperature: -20℃ to 40℃, Humidity: < 90% RH
Storage & Transportation	Temperature: -40℃ to 60℃, Humidity: < 90% RH
