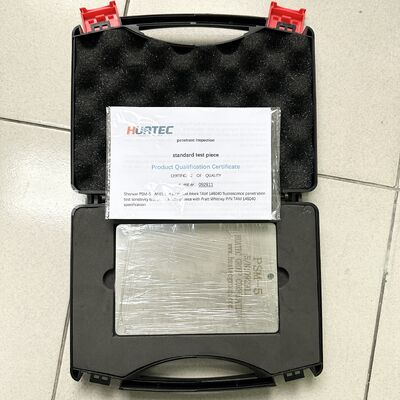

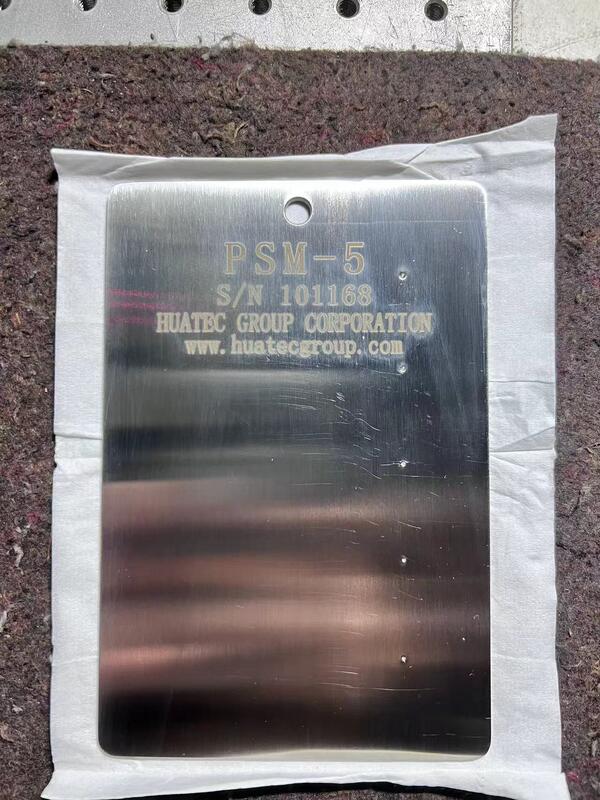

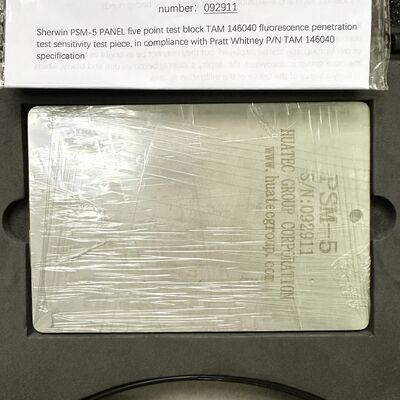

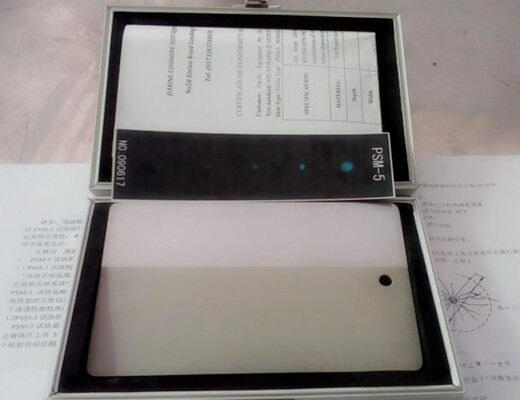

Penetrant System Monitor Panel,A stainless steel panel, 0.090" thick and measuring 4 x 6 inches. A chrome plated strip runs the length of one side of the panel. Five crack centers are evenly spaced in the chrome plating in order of magnitude; the largest is readily visible with low sensitivity penetrants, while the smallest is difficult to observe even with high sensitivity materials. Adjacent to the chrome plated section is a grit blasted area of "medium roughness", to judge penetrant wash characteristics.

 The PSM-5 Panel comes in two versions. Both versions are manufactured to specifications: o Grit Blasted Type - has a chrome strip which has been lightly grit blasted in order to dull the surface. o Smooth Type - the chrome plated strip of the second version is not grit blasted.

 PSM-5 Panel processing meets MIL-STD-6866 and ASTM E-1417 requirements for daily system check.

CERTIFICATE OF CONFORMITY AND CALIBRATION

Test standard: MIL-STD-6866,ASME E1417P & WA TAM146040

Item Type:  Eishin Type PSM-5 Reference  Test  Block      Serial No: 307142
