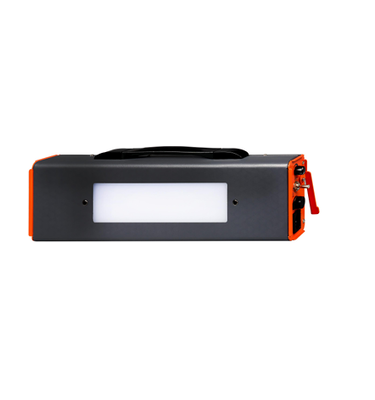

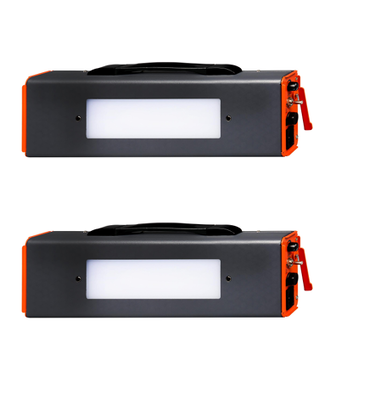

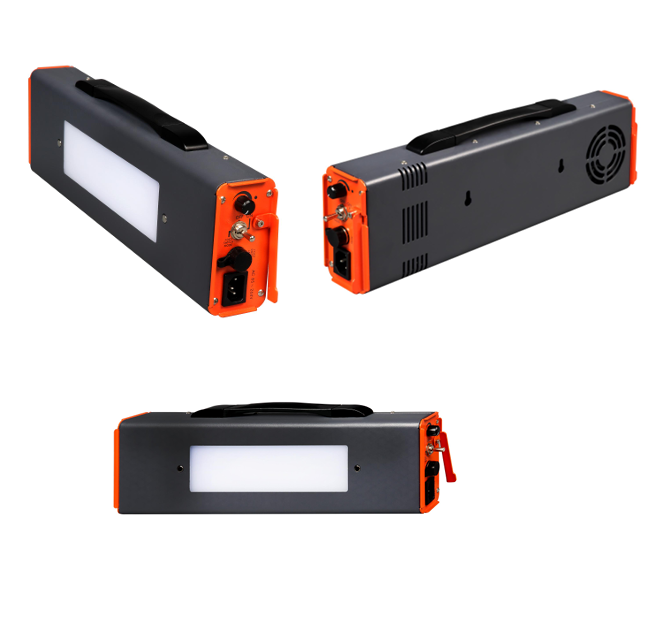

HFV-2206 Pure White LED Light Industry Film Viewer

Large Image : HFV-2206 Pure White LED Light Industry Film Viewer

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO,CE
Model Number:	HFV-2206

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	in carton box
Delivery Time:	5~7 days after payment
Supply Ability:	50 pcs per month

Contact Now

HFV-2206 Pure White LED Light Industry Film Viewer

Description

Product Name:

Film Viewer

Control Mode:

Manual + Foot-switch

Power:

48W

Maximum Light Intensity:

>70,000cd/㎡

Highlight:

Pure White LED film viewer

Industrial film viewer with LED

Non-destructive testing LED viewer

HFV-2206 Pure White LED Light Industry Film Viewer

Features

Design	Modern,Stylish and Simple
Easy to control	Optimized right-side Panel control design
Maximum Light Intensity	>70,000cd/㎡
Easily View	<4.0 density
Control mode	Manual + Foot-switch
Uniform Viewing Area	98% Full Screen
Dimmer Control	0% to 100% continuous
Cooling Method	Air cooling
Surface Temperature	＜13°
Power Requirements	85—264VAC/47—60Hz
Power	48W
Dimensions	43cm×12.5cm×6cm 16.9"×4.9"×2.4" (L×W×H)
Viewer Window	22cm×6cm 8.7"×2.4"(L×W)
Substrate—mask window	20cm×4.5cm;7.9"×1.8"(L×W)
Weight	2.5kg 5.5lbs
Packing size	48cm×17.8cm×15.8cm 18.9"×7"×6.2"
Weight	4kg 8lbs

Multichannel precise brightness controller

Magnetic film holder can optionally move

High stability power supply

Built-desktop stand and hanging hole

HFV-2206 Pure White LED Light Industry Film Viewer
