Product Details:
|
| Radiation Types: | α, β, γ And X-rays | Detector: | Flat Dual-flashing Detector (GM Tube Optional) |
|---|---|---|---|
| Measurement Units: | μGy/h, μSv/h, CPS, CPM, Bq/cm2 | Energy Range: | 25KeV - 3MeV |
| Measurement Range: | α, β: 0.00CPS - 105CPS α, β: 0.00Bq/cm2 - 106Bq/cm2 X, γ: 0.1μGy/h - 200μGy/h | Detection Efficiency: | 90Sr-90Y, ≥30%, 239Pu, ≥20% (measured On The Protective Grille) |
| Inherent Error: | Less Than ±15% (relative To 137Cs) | ||
| Highlight: | Portable alpha beta contamination meter,Surface contamination monitor with dual-flashing detector,Radiation contamination meter for alpha beta gamma |
||

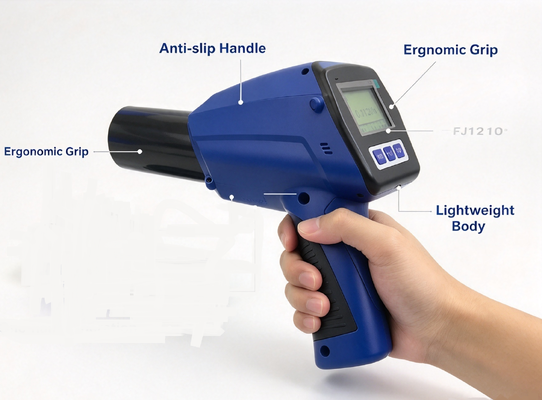

FJ1210(φ50) Portable α β Surface Contamination Meter, Detect Alpha Beta Gamma X‑ray, Flat Dual‑flashing Detector Radiation Contamination Monitor
【Product Introduction】
The FJ1210 (φ50) type radioactive detector is a portable radiation measurement instrument, mainly used for measuring surface α and β radioactive contamination and X and γ radiation dose rates. The instrument is equipped with a flat dual-flashing detector. It uses a high-speed, low-power microprocessor as the data processing unit, a large-screen, backlit graphic dot matrix LCD as the display interface, and a film keypad for operation. The operation is simple and convenient. Users can also set parameters such as measurement time, alarm threshold, nuclide efficiency, etc. Meanwhile, the instrument has functions of over-threshold alarm, under-voltage alarm, counting fault alarm, and high-voltage fault alarm.
【Technical Specifications】
| Radiation Types | α, β, γ and X-rays |
| Detector |
Flat dual-flashing detector (GM tube optional), Can distinguish α and β isotopes |
| Measurement Units | μGy/h, μSv/h, CPS, CPM, Bq/cm2 |
| Energy Range | 25KeV - 3MeV |
| Sensitivity Area | 16cm2, diameter 45mm |
| Measurement Range |
α, β: 0.00CPS - 105CPS α, β: 0.00Bq/cm2 - 106Bq/cm2 X, γ: 0.1μGy/h - 200μGy/h |
| Detection Efficiency |
90Sr-90Y, ≥30%, 239Pu, ≥20% (measured on the protective grille) |
| Inherent Error | Less than ±15% (relative to 137Cs) |
| Temperature and Humidity Characteristics | -10℃ - +50℃, RH 95% (35℃) |
| Dimensions | 240*120*200mm |
| Power Supply |
4 AA-type 1.5V batteries (optional rechargeable batteries) |
| Power Consumption | < 90mW |
[Main Functions]
Sound and light alarm, adjustable alarm threshold
Intelligent fault display
Graphical dot matrix liquid crystal display with backlight
Continuous adjustable timing duration
Battery low voltage indication
Ability to set measurement nuclides
Utilizes flat dual-flashing detectors, with high sensitivity
Capable of measuring α, β, γ and X-rays
![]()
![]()
![]()
