FJ1210(φ50) Digital Surface Contamination Monitor, Alpha Beta Gamma X‑Ray Radiation Detector For Nuclear Industry Site Survey

FJ1210(φ50) Digital Surface Contamination Monitor, Alpha Beta Gamma X‑Ray Radiation Detector For Nuclear Industry Site Survey
FJ1210(φ50) Digital Surface Contamination Monitor, Alpha Beta Gamma X‑Ray Radiation Detector For Nuclear Industry Site Survey FJ1210(φ50) Digital Surface Contamination Monitor, Alpha Beta Gamma X‑Ray Radiation Detector For Nuclear Industry Site Survey

Large Image :  FJ1210(φ50) Digital Surface Contamination Monitor, Alpha Beta Gamma X‑Ray Radiation Detector For Nuclear Industry Site Survey

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: FJ1210(φ50)
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

FJ1210(φ50) Digital Surface Contamination Monitor, Alpha Beta Gamma X‑Ray Radiation Detector For Nuclear Industry Site Survey

Description
Radiation Types: α, β, γ And X-rays Detector: Flat Dual-flashing Detector (GM Tube Optional)
Measurement Units: μGy/h, μSv/h, CPS, CPM, Bq/cm2 Energy Range: 25KeV - 3MeV
Measurement Range: α, β: 0.00CPS - 105CPS α, β: 0.00Bq/cm2 - 106Bq/cm2 X, γ: 0.1μGy/h - 200μGy/h Detection Efficiency: 90Sr-90Y, ≥30%, 239Pu, ≥20% (measured On The Protective Grille)
Inherent Error: Less Than ±15% (relative To 137Cs)
Highlight:

digital surface contamination monitor

,

alpha beta gamma radiation detector

,

nuclear industry radiation survey meter

FJ1210(φ50) Digital Surface Contamination Monitor, Alpha Beta Gamma X‑Ray Radiation Detector For Nuclear Industry Site Survey


【Product Introduction】

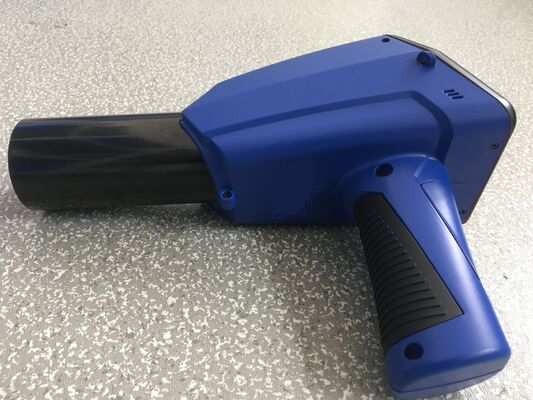

The FJ1210 (φ50) type radioactive detector is a portable radiation measurement instrument, mainly used for measuring surface α and β radioactive contamination and X and γ radiation dose rates. The instrument is equipped with a flat dual-flashing detector. It uses a high-speed, low-power microprocessor as the data processing unit, a large-screen, backlit graphic dot matrix LCD as the display interface, and a film keypad for operation. The operation is simple and convenient. Users can also set parameters such as measurement time, alarm threshold, nuclide efficiency, etc. Meanwhile, the instrument has functions of over-threshold alarm, under-voltage alarm, counting fault alarm, and high-voltage fault alarm.

【Technical Specifications】

Radiation Types α, β, γ and X-rays
Detector

Flat dual-flashing detector (GM tube optional),

Can distinguish α and β isotopes
Measurement Units μGy/h, μSv/h, CPS, CPM, Bq/cm2
Energy Range 25KeV - 3MeV
 Sensitivity Area 16cm2, diameter 45mm
Measurement Range

α, β: 0.00CPS - 105CPS

α, β: 0.00Bq/cm2 - 106Bq/cm2

X, γ: 0.1μGy/h - 200μGy/h
Detection Efficiency

90Sr-90Y, ≥30%, 239Pu, ≥20% (measured on the protective grille)
 Inherent Error Less than ±15% (relative to 137Cs)
Temperature and Humidity Characteristics -10℃ - +50℃, RH 95% (35℃)
Dimensions 240*120*200mm
Power Supply

4 AA-type 1.5V batteries (optional rechargeable batteries)
Power Consumption < 90mW


[Main Functions]
 Sound and light alarm, adjustable alarm threshold
 Intelligent fault display
 Graphical dot matrix liquid crystal display with backlight
 Continuous adjustable timing duration
 Battery low voltage indication
 Ability to set measurement nuclides
 Utilizes flat dual-flashing detectors, with high sensitivity
 Capable of measuring α, β, γ and X-rays

FJ1210(φ50) Digital Surface Contamination Monitor, Alpha Beta Gamma X‑Ray Radiation Detector For Nuclear Industry Site Survey

FJ1210(φ50) Digital Surface Contamination Monitor, Alpha Beta Gamma X‑Ray Radiation Detector For Nuclear Industry Site Survey

FJ1210(φ50) Digital Surface Contamination Monitor, Alpha Beta Gamma X‑Ray Radiation Detector For Nuclear Industry Site Survey
