5mm Inspection Size Coating Thickness Meter  TG8829 with the Measuring Range 0 - 1250um

5mm Inspection Size Coating Thickness Meter  TG8829 with the Measuring Range 0 - 1250um
5mm Inspection Size Coating Thickness Meter  TG8829 with the Measuring Range 0 - 1250um 5mm Inspection Size Coating Thickness Meter  TG8829 with the Measuring Range 0 - 1250um 5mm Inspection Size Coating Thickness Meter  TG8829 with the Measuring Range 0 - 1250um 5mm Inspection Size Coating Thickness Meter  TG8829 with the Measuring Range 0 - 1250um 5mm Inspection Size Coating Thickness Meter  TG8829 with the Measuring Range 0 - 1250um 5mm Inspection Size Coating Thickness Meter  TG8829 with the Measuring Range 0 - 1250um 5mm Inspection Size Coating Thickness Meter  TG8829 with the Measuring Range 0 - 1250um 5mm Inspection Size Coating Thickness Meter  TG8829 with the Measuring Range 0 - 1250um

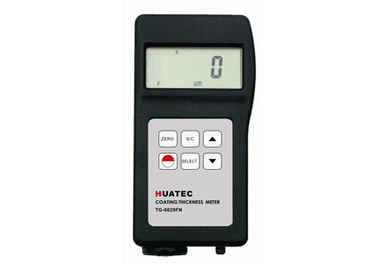

Large Image :  5mm Inspection Size Coating Thickness Meter  TG8829 with the Measuring Range 0 - 1250um

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: TG8829
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Carton
Delivery Time: 3-7 working days
Payment Terms: TT, L/C, Western Union
Contact Now

5mm Inspection Size Coating Thickness Meter  TG8829 with the Measuring Range 0 - 1250um

Description
Measuring Range: 0-1250um/0-50mil Resolution: 0.1/1um
Min. Measuring Area: 5mm Min. Sample Thickness: 0.3mm
Power Supply: 4x1.5V AAA(UM-4)battery Dimension: 124x62x30mm
Highlight:

coating thickness meter

,

digital coating thickness gauge

5mm Inspection Size Coating Thickness Gauge TG8829 with the Measuring Range 0 - 1250um

Description:
Operating principle: magnetic induction/eddy current (F/NF)
With separate probe(s)
Measuring range:                       0-1250um/0-50mil
Resolution:                                 0.1/1um
Accuracy:                                    ±1-3%n or ±2.5um
Min. measuring area:                 5mm
Min. sample thickness:               0.3mm
Battery indicator:                       low battery indicator
Metric/ imperial:                         convertible
Power supply:                            4x1.5V AAA(UM-4)battery
Auto power off
Operating conditions:                0-+45℃(32℉-104℉), ≤90%RH
Dimensions:                               124x62x30mm
weight:                                      115g

Standard Delivery of Film Thickness Gauge TG8829FN
Main unit                                       1
F type probe                                 1
N type probe                                 1
F calibration base set                    1
N calibration base set                    1
Calibration foil set                          1set (4 foils)
Carrying case                                 1
Instruction manual                         1

Optional Accessories of Paint Thickness Gauge TG8829FN
Cable and software for RS-232C
Customized testing range
