PLC Control X-ray Pipeline Crawler 250Kv 17Ah HXPC-100B Length 2000mm

PLC Control X-ray Pipeline Crawler 250Kv 17Ah HXPC-100B Length 2000mm
PLC Control X-ray Pipeline Crawler 250Kv 17Ah HXPC-100B Length 2000mm PLC Control X-ray Pipeline Crawler 250Kv 17Ah HXPC-100B Length 2000mm PLC Control X-ray Pipeline Crawler 250Kv 17Ah HXPC-100B Length 2000mm PLC Control X-ray Pipeline Crawler 250Kv 17Ah HXPC-100B Length 2000mm PLC Control X-ray Pipeline Crawler 250Kv 17Ah HXPC-100B Length 2000mm PLC Control X-ray Pipeline Crawler 250Kv 17Ah HXPC-100B Length 2000mm PLC Control X-ray Pipeline Crawler 250Kv 17Ah HXPC-100B Length 2000mm

Large Image :  PLC Control X-ray Pipeline Crawler 250Kv 17Ah HXPC-100B Length 2000mm

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE ISO
Model Number: HXPC-100B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Case
Delivery Time: 3-7 working days
Payment Terms: TT, L/C, Western Union
Supply Ability: 100 sets per month

PLC Control X-ray Pipeline Crawler 250Kv 17Ah HXPC-100B Length 2000mm

Description
Pipe Range: 275-1500mm Pipe Voltage: 200-300KV
Controller: PLC
High Light:

ndt crawler

,

ndt x ray equipment

Controlled by PLC X - ray Pipeline Crawlers 250Kv 17Ah HXPC-100B With the Crawler Length 2000mm



The X-ray pipeline crawlers include the special part that can detect the welding line of long pipeline. The X-ray pipeline crawlers have the advantages of high radiographic quality, high imaging sensitivity, low failure rate and high work efficiency. The X-ray pipeline crawlers have differential driving and vibration absorbers. The chassis of the X-ray pipeline crawlers can be moved in the pipeline steadily without off center running and overturning. The X-ray pipeline crawlers can be moved in the pipeline with great efficiency because it is controlled by PLC with protecting it from blocking and under voltage. The X-ray pipeline crawler is easy to be separated into several parts and then to be put together, so it is easy to carry. You can change the exposure parameter and make the X-ray pipeline crawler move, stop and have an exposure with the exterior controlling source. The X-ray pipeline crawlers are easy to operate.



Specification of X Ray Pipeline Crawler

          Model



Specification

HXPC-100A

HXPC-100B

HXPC-100C

Pipe diameter detecting range

Φ800—Φ1500mm

Φ500—Φ1000mm

Φ273—Φ700mm

Total weight

       140KG

     125KG

     100KG

Crawler length

       2200mm

2000mm

2000mm

Creeping speed

15M/min

15M/min

15M/min

Creeping distance

2KM

2KM

2KM

Locating error

±5mm

±5mm

±5mm

Max.output voltage

300Kv

250Kv

200Kv

Max.outout current

3mA

3mA

3mA

Climbing ability

40°

40°

25°

Radiation angle

360°*35°

360°*35°

360°*35°

Output power

1.5KW

1.25KW

1KW

Batteryenergy

22Ah/120V

17Ah/120V

12Ah/120V

Motor power

300W

300W

200W

Exposure time

1s~1h continues adjustable

1s~1hcontinues adjustable

1s~1hcontinues adjustable

Exposure voltage

5 selection

5 selection

5 selection

Operation temperature

-30°~ 70°

-30°~ 70°

-30°~ 70°



The crawler include below parts as standard accessories:

 Main vehicle

Lead acid pile: 110V(22Ah)

X-ray machine: 250KV/5mA

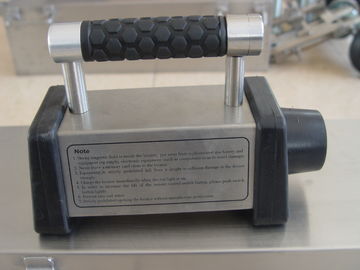

Remote controller (Electro magnetic induction type, no source)
