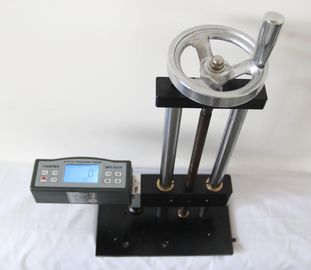

High accuracy Optional Portable Surface Roughness Tester Platform Accessories

Product name: Roughness Waviness Tester

Model: SRT-7300

X direction range: 50mm

Z direction range: ±500μm (optional ±1000μm)

Product name: surface roughness tester

Display: 3.5 inches color graphic TFT touch screen

Accuracy: Less than ±10%

Measuring Range: ±80um/±160 um(can be optional to 320um)

Continuous working time: more than 20 hours

Ra, Rq: 0.005μm~16μm

Rz, R3z, Ry, Rt, Rp, Rm: 0.02μm~160μm

Sk: 0~100%

Multiple parameter measurement: Ra, Rz, Rq, Rt

Four wave filtering methods: RC, PC-RC, GAUSS and D-P

Display: 4 digits, 10 mm LCD, with blue backlight

Parameters: Ra, Rz, Rq, Rt

Measuring range: 160 μm

Tip radius: 5 μm

Tip material: Diamond

Stylus force: 4mN(0.4gf)
