Product Details:
|
Product Name: | Ultrasonic Calibration Block | Type: | IOW Block |
---|---|---|---|
Material: | 1018 Carbon Steel, LY12/6063/7075 Aluminum,304 Stainless Steel | Standard: | British Standard 2704 |
Dimensions: | 305mm X 75mm X 50mm | Packing: | ABS Engineering Plastics |
Highlight: | ut calibration blocks,ndt calibration blocks |

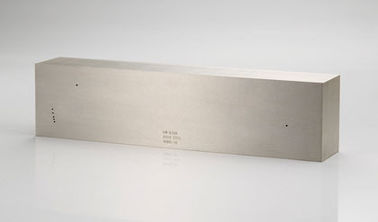

Ultrasonic Calibration Blocks IOW for beam profile measurement of angle beam transducer
Specifications:
Calibration blocks is an important supplementary material in the Ultrasonic testing, used to calibrate the sensitivity of the ultrasonic flaw detector and ultrasonic probe. Our testing block is certificated by the authority of the state depeartment. Our products include: domestic standards UT blocks, European standard UT block, NDT block, hexagonal testing block, and so on.
Used for beam profile measurement of angle beam transducers and measurement of transducer angles. Contains nine 1.5mm diameter x 22mm deep side drilled holes. In accordance with British Standard 2704 requirements.
Dimensions: 305mm x 75mm x 50mm
IOW TYPE2:
