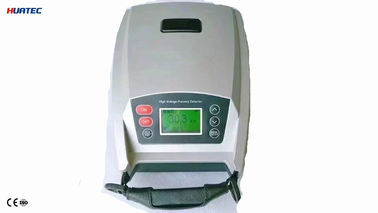

HUATEC HD-105 High voltage Pinhole Detector / Holiday Detector
Product introduction
HUATEC HD-105 High voltage Pinhole Detector is intelligence pulsed high voltage protecting coating quality detector. It install anti-jamming intelligent chip, anti-jamming LED screen and brand new digital control circuit to make a accurately high voltage output ±(0.1KV+3% reading)
It can adjust its value of voltage according to the thickness of protecting coating.
HD-105 use lithium battery for power source, it is also can be used in field.
Battery can be replaced by customer themselves, useful for long time testing work in field.
Theory
When high voltage probe brushed pass non conductive coating, If the coating is too thin or metal has leakage or pinhole, the air gap will be punctured and produce spark discharge when pulse high voltage. At same time, detector will record leak number.
Application
The equipment design of HD-105 is advanced, stable and reliable, which can be widely used in chemical industry, oil, rubber and enamel, so it is an essential tool used to detect metal anti-corrosion coating quality.
Parameter
| Parameter | |
| Test voltage range | 0.6KV～30KV |
| Thickness range | 0.05～10mm |
| High voltage output | Pulse |
| Voltage display | 3 digit |
| Resolution | 0.1KV |
| Voltage precision | ±(0.1kv+3%) |
| Max leak record | 999 maximum |
| Way of alarming | Headphone buzzer and light |
| Shutdown | Auto and Manual |
| Display | 128*64 LED screen with backlight |
| Power | ≤6W |
| Size | 240mm*165mm*85mm |
| Battery | 12V 4400mA |
| Working time | ≥12 hours(Max voltage) |
| Charging time | ≈4.5 hours |
| Voltage of adapter | Input AC 100-240V Output 12.6V 1A |
| Probe wire | Close to 1.5m |
| Earth lead wire | 2*5m black/black |
| Fuse | 1A |
Form 1 Test voltage form
| Material | Thickness (mm) | Test voltage (KV) | Note |
| Coal tar epoxy | 0.2 0.4 0.6 0.8 | 4~5KV Or self setting | Follow the standard law if exist. |
| Petroleum Asphalt | 2 3 5.5 7 9 | 11 15 18 20 24 | |
| Polyethyle ne Tape | Basic on 3249TC=V formula V: voltage TC: thickness of coating Follow SY4014-92 acceptance specification | ||
| Glass lining | Close to 8KV~20KV | ||
| Other anti-corro sion material | According to voltage or the insulation performance of the material | ||
| Note:This is for your reference only. |
Form 2 The thickness of coating and reference voltage
| Thickness (um) | Voltage (KV) | Thickness (um) | Voltage (KV) |
| 50 | 0.7 | 1250 | 5.5 |
| 100 | 1.0 | 1500 | 6.3 |
| 150 | 1.2 | 2000 | 8.0 |
| 200 | 1.5 | 2500 | 9.6 |
| 250 | 1.7 | 3000 | 11.1 |
| 300 | 2.0 | 3500 | 12.6 |
| 350 | 2.2 | 4000 | 14.1 |
| 400 | 2.4 | 5000 | 17.1 |
| 500 | 2.9 | 6000 | 20.1 |
| 600 | 3.3 | 8000 | 25.7 |
| 800 | 4.0 | 10000 | 30 |
| 1000 | 4.7 |
Standard Accessory:
1. HD-105 detector
2. High voltage probe
3. Probe wire
4. Brush
5. Earth lead wire
6. Charger
7. Carry belt
8. Magnetic earthing rod
9. ABS suitcase
10. Instruction, warranty card and fuse
Optional accessory:
1. Flat brush
2. Conductive rubber brush
3. Earthing rod
4. Headphone
5. Customized outer and inner size electrode
