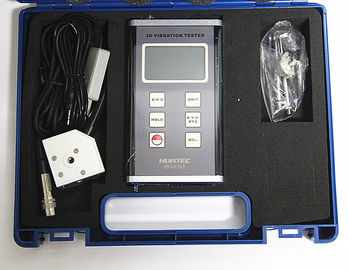

3D XYZ Digital Portable Vibration Meter HG-6363 3 Axis
Application: The vibration meter used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.
It is specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.
It uses the high-performance acceleration meter, can realize the repetitiveness and accurate measurement.
It has the function of testing axle bearing situation.
Specification of 3D vibration meter:
Vibration Sensor:3-Axis Piezoelectric accelerometer
Display: 4 digit LCD backlit
Axial Vibration: any one axis of X ,Y,Z or 3 axes of XYZ
Velocity : 0.01-400.0 mm/s 0.000-16.00 inch/s true RMS
Acceleration : 0.1-400.0 m/s² 0.3-1312 ft/s² 0.0-40g equivalent peak
Displacement : 0.001-4.000mm 0.04-160.0 mil equivalent peak-peak
Frequency Range for Measuring:10Hz. to 10kHz.
Accuracy: 5% of reading + 2 digits
Metric/ Imperial conversion
Analogue Output: AC output 0~2.0V peak full scale
(load resistance: above 10k)
With Max. value hold and low battery indication
PC interface: RS232C or Bluetooth interface
( Cable and software is not included)
Power supply: 2x1.5v AA size (UM-3) batteries
Power off : Manual off at any time or auto power off is enabled by user
Temperature : 0-50 ℃
Humidity : below 95% RH
Dimensions: 124x62x30mm/4.9x2.4x1.2 inch
Weight: 120g (not including batteries)
Powerful rare earth magnet 1 pc.
Accelerometer 1 pc.
Stinger probe (Cone) 1 pc.
Stinger probe (Ball) 1 pc.
Carrying case 1 pc.
Operation manual 1 pc.
Optional accessories: Headphones for use as electronic stethoscope
Cable and software for RS232C
