Product Details:
|
| Frequency Resolution: | 0.25Hz | Testing Range(Metric): | Acce: 0.1 ~ 205.6 M/s2(peak) |
|---|---|---|---|
| Data Memory: | 100 × 80 Pieces Of Data And100 Spectrums | Software: | Yes |
| Tolerance: | ±5% | Measuring Distance: | 0.15 ~ 1m |
| Display: | TFT320×200 Pixels With RGB | Data Interface: | USB |
| Overall Dimensions: | 212×80×35 | Printer: | Integrated Thermal |
| Battery: | Rechargeable Li Battery,1500mAh | Continuous Working Time: | About 50h |
| High Light: | HG-6380 Portable Vibration Meter,Real Time Portable Vibration Meter,0.25Hz Portable Vibration Meter |
||

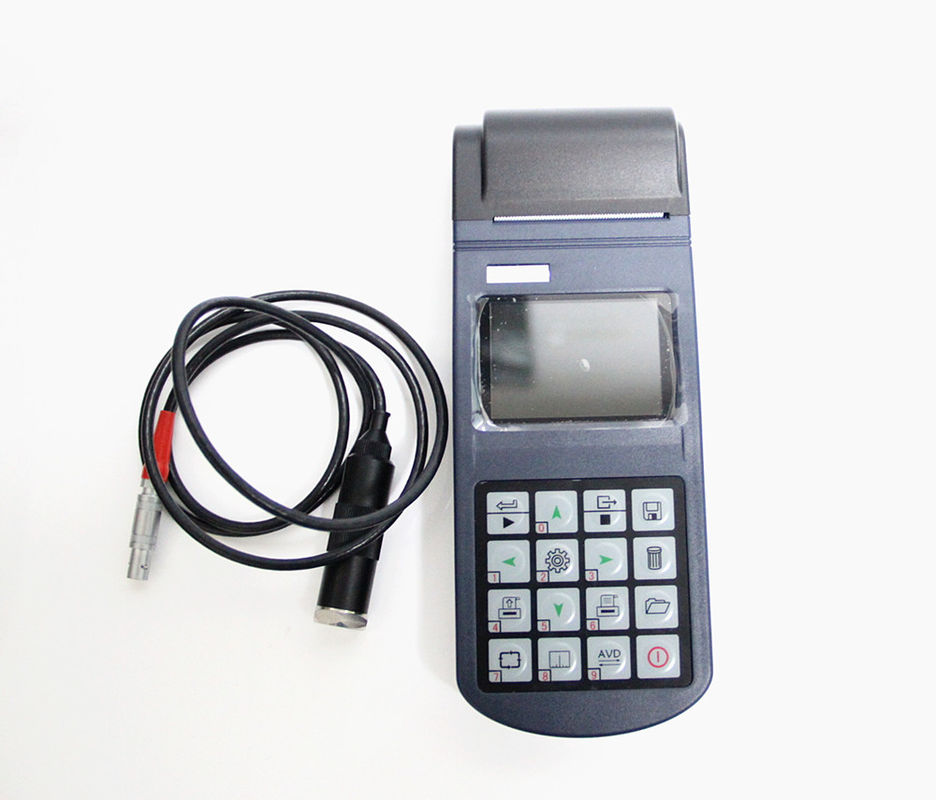

Real-time Vibration Meter spectral chart HG-6380
HG-6380 uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also rotational speed.
The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can test the acceleration, velocity, and displacement of vibration as well as rev (or inherent frequency), also perform simple failure diagnosis.
The technical specifications of HG-6380 comply with the requirements of GB 13823.3. HG-6380 is widely used in machinery, power, metallurgy, automobile and other industrial fields.
Specifications:
Model name:HG-6380
Testing range(Metric)
Acce: 0.1 ~ 205.6 m/s2(peak)
Velo: 0.1 ~ 400.0 mm/s(RMS)
Disp: 0.001 ~ 9.0 mm(peak-peak)
Testing range(Imperial)
Acce: 0.01 ~ 22.00 g(peak)
Velo: 0.01 ~ 15.75 in/s(RMS)
Disp: 0.1 ~ 356.3 mil(peak-peak)
Freq range
Acceleration: 10Hz ~ 200Hz, 10Hz ~ 500Hz,10Hz ~ 1KHz, 10Hz ~ 10KHz
Velocity:10Hz ~ 1KHz
