ASTM E110 Huatec Hb-P3000 Portable Brinell Hardness Tester Hydraulic

ASTM E110 Huatec Hb-P3000 Portable Brinell Hardness Tester Hydraulic
ASTM E110 Huatec Hb-P3000 Portable Brinell Hardness Tester Hydraulic ASTM E110 Huatec Hb-P3000 Portable Brinell Hardness Tester Hydraulic

Large Image :  ASTM E110 Huatec Hb-P3000 Portable Brinell Hardness Tester Hydraulic

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HB-P3000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export package
Delivery Time: 1-4working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500Pcs

ASTM E110 Huatec Hb-P3000 Portable Brinell Hardness Tester Hydraulic

Description
Test Force: 3000 Kgf (1000 Kgf, 750 Kgf, 500 Kgf Optional) Test Range: 32~650 HBW
Indicator Error: Complies With ISO 6506, ASTM E10, And ASTM E110 Test Ball: 10mm Carbide Alloy Ball (5mm Optional)
Weight: 13.8KG Opening Dimension: 350 Mm (Height) X 100 Mm (Throat Depth)
High Light:

astm e110 portable brinell hardness tester

,

portable brinell hardness tester hydraulic

,

portable hardness tester brinell astm e110

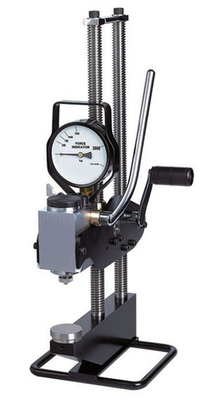

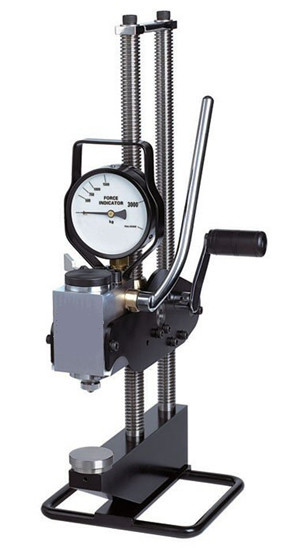

HUATEC HB-P3000 PORTABLEHYDRAULIC BRINELL HARDNESS TESTER



Main Features

1 Test principle. Apply hydraulic principle permitting loading 3,000 kgf manually.

2 On-site Testing. It could be applied in workshop, simple operation, easy carrying, and testing body hardness of large parts piece by piece.

3 Permanent Indentation. By 3,000 kgf and 10mm test ball, the indentation is permanent for re-inspecting.

4 High Reliability. It follows Brinell hardness test method completely, the same as desk testers, reflecting the actual mechanical property of material or parts.

5 High Accuracy. Indication error, repeatability error and test force accuracy comply with ISO, and ASTM standards, the same as desk testers.

6 Wide Application Range. As long as clamped to the parts, it could test parts in any shape and size.

7 Wide Test Range. It could test various common metal materials by its combination of different test force and test head, that is, wide test range.



Application

On-site test of steel products, nonferrous metal, castings, forgings, and semi-finished heat treatment parts.

Applied to too large parts for desk testers to test. Replace Leeb testers which are in low accuracy and reliability.

Indentation could be read by Brinell indentation measurement system and hardness values displayed directly.



Technical Parameters

Test Force: 3000 kgf (1000 kgf, 750 kgf, 500 kgf optional)

Test Ball: 10mm Carbide alloy ball (5mm optional)

Test Range: 32~650 HBW

Opening Dimension: 350 mm (Height) x 100 mm (Throat depth)

Indicator Error: complies with ISO 6506, ASTM E10, and ASTM E110.

Repeatability Error: complies with ISO 6506, ASTM E10, and ASTM E110.

Test Force Error: complies with ISO 6506, ASTM E10, and ASTM E110.

Weight: 13.8 kg



Standard Accessories

Hardness Tester HUATEC HB-P3000

Handle

Brinell hardness block

Anvil (flat, V-type, spot-type )

20X Reading Microscope

10mm Carbide alloy ball



Optional Accessories

Brinell Hardness Block (high or low value)

Carbide alloy ball (5 mm, 10 mm)

Spare Parts (Hydraulic oil capsule, Hydraulic oil, O-ring etc.)

Maintaining Tools

Brinell Indentation Measurement System

Rechargeable Angle Grinder
