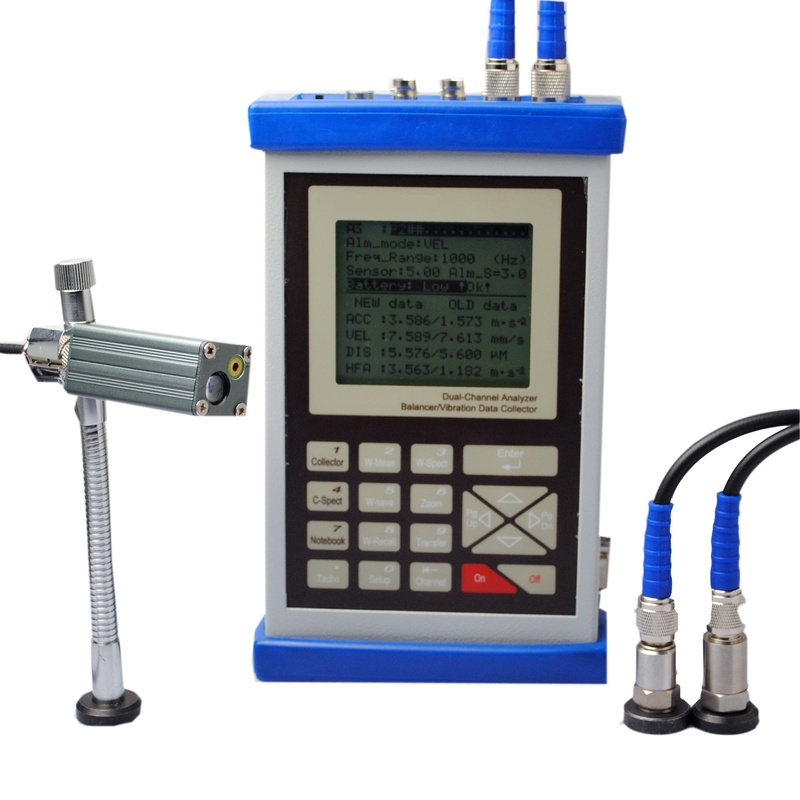

2-Channel Vibration Analyzer/Balancer HG907 -Low Cost
Features:
•Full featured 1 and 2-planes field balancing (10 sets balancing data storage; balancing process clarified by vector graph; trial weight estimation; can remain or remove trial after balancing; balancing weight decomposition)
•Standard influence-coefficients-based calculation
•2 channels simultaneous sampling & display
•On-site 400-lines FFT spectrum and waveform display; Transfer function analysis;
•Data storage: 62 1024-point time waveforms
and 240 data sets
•Acceleration envelope demodulation for rolling bearing and gear-box diagnosis
•On-site spectrum comparison function
•Inner or external trigger selectable
Specifications:
·Input signal: accelerometer and voltage, 2 channels
·Amplitude ranges & Frequency Response of overall measurement:
Displacement 0.001 – 5 mm peak-peak 10 - 500 Hz
Velocity 0.1 - 200mm/s true RMS 10 - 1000 Hz
Acceleration 0.1 - 250m/s2 peak 10 - 10000 Hz
Acceleration Envelope 0.1 - 20m/s2 true RMS 5-2000Hz from 15-40 KHz
Voltage 0.1 - 10V peak-peak 0.5 - 10000 Hz
·Amplitude spectrum analysis: 100 and 400 Lines, hanning windowed
·Frequency span of spectrum analysis: 100, 200, 500, 1k, 2k, 5k, 10kHz
-Data storage: 62 1024-points time waveforms and 240 data sets
·Notepad: 10 condition codes for visual inspection
·Power: Ni-MH rechargeable battery for 8 hours continuous operation,
low battery voltage warning
·Operating Environment: 0~50 Celsius degree, 90% humidity non-condensing
·Rotating speed measurement range(with laser-aimed tacho sensor):180-24000 r/min
·Rotating speed range for balancing:60-8000 r/min
·Gain adjustment: both automatic-adjustment or manual- adjustment selectable
·Anti-aliasing filter: 8th order elliptic low-pass
·Dimensions: 21×13×4 cm; weight: 1.2 kg
HG907 Pack List
HG907 Vibration Data Collector 1
Accelerometer 2
Magnetic Mount 2
Steel Extension Probe 1
Battery Charger 1
Accelerometer Cable 2
Balancing Module 1
Tacho/Trigger Sensor and cable 1
Tacho/Trigger Sensor Stand 1
Reflector Paper set 1
Quick Start Guide 1
Certificates of HG904D and sensors 3
Carrying Case 1
