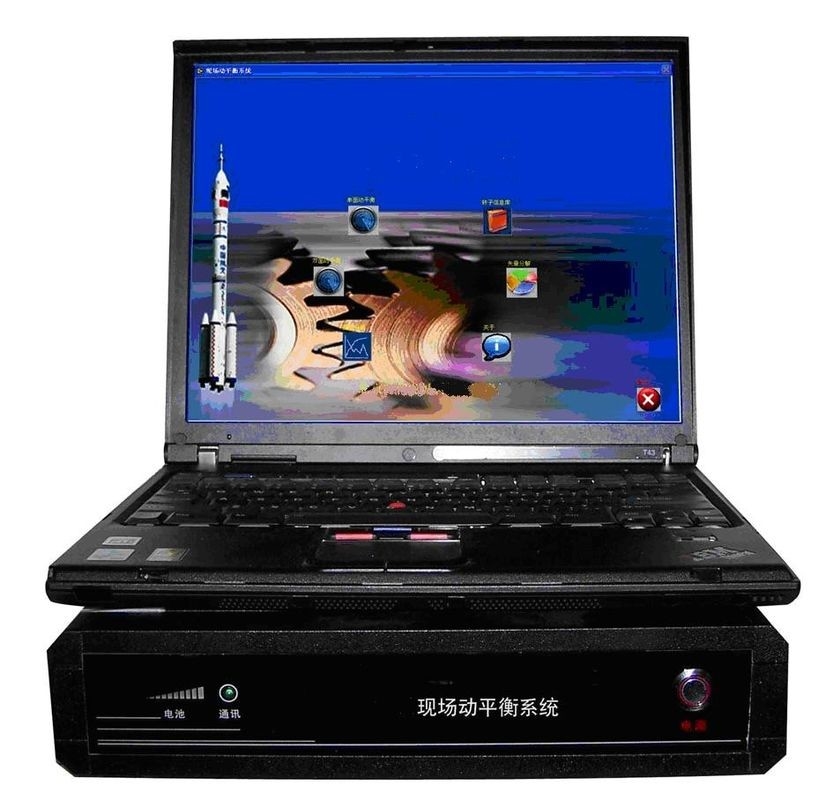

Multifunctional on-line balance system vibrometer HG-7100
HG-7100 Dynamic Balancing Instrument is a versatile instrument that adopts advanced microelectronic technology and fault diagnosis technology. It integrates fault diagnosis and dynamic balancing calibration for devices and incorporates single and double channels.
HG-7100 is equipped with single/double-channel vibrating data collectors and can be used to test and calculate the dynamic balance of single plane and double plane.
The trial weight method and the method of influence coefficient can be used to carry out balancing calibration. The system can automatically calculate the weight and angle for adding (taking away) the balancing weight. It has function of rotor balancing database management and vector decomposition.
Function and Specification
1.Single-sided, double-site dynamic balancing function, can be used from hundreds of grams to tens of tons. Revolving speed from 1r/min to 180000r/min.
2. Balanced approach: test weight method and the influence coefficient method
3. Start-up times: Using the original installation conditions, open and down 2 to 3 times. Using the influence coefficient method one time can be obtained. So that achieving the balance correction and improve the efficiency.
4.Specialized test weight method, can evaluate the reasonable test weight quality according to the imputed data of rotor and actual field environment, which reduce start-up one time and improve the efficiency greatly.
5. Method of weight :Test weight method；Any angle method,The average weight method；Add slide method,Slide the slider method.
6. Wizard-style balancing operations: provide a comprehensive wizard-balancing function. Operator can carry out the dynamic balance correction step by step. It is very easy to use.
7. Humanized dynamic balance sequel function: If the dynamic balance process is interrupted by some reasons, can go on doing from the interrupted place, not from the starting.
8. Fast fault diagnosis function: Before the balance, can diagnose the rotor so that ensure the fault reason is that the dynamic balance negative, to avoid the blind balance. The function can be used to diagnose the common fault.
9. Vector decomposition: calculate the balance quality on vector decomposition and vector synthesis reasonably in order to meet the objective requirements of field installation..
Vector decomposition: the quality of the solution calculated the reasonable balance of vector decomposition and vector synthesis, in order to meet the objective requirements of field installation
10. Improved balance report: After completing the balance process, the software can generate the dynamic balance report forms automatically and clear the basic information of rotor, the reducing situation of vibration and detailed test weight information.
11. Completed online help system. According to the specific examples, explain the operation steps and the possible problems in detail, so that it is easy to learn and use the software.
12. Rotate Speed Range:
Standard Form:60～20000r/min
Low-speed :>1 r/min,
High-speed:>20000 r/min
13．Quality Range:Standard Form: >1KG Reinforced Type:>50g
14．Residual unbalance: Quality is 1mg,Vibration value:speed:0.01mm/s
15．One balance can make the unbalance reduce above 90%
16．Accuracy of vibration is 5 %
17．Accuracy of vector is 1%%
18．Software lifetime free upgrades, system lifelong maintenance
Operating Environment
1．Environment Temperature 5℃～40℃
2．Relative Humidity≤85%
3．No corrosive ambient
4．No strong electromagnetic interference, no strong vibration and no impulse source
| NO | Item | Qua | Unit | Model | Remark |
| 1 | Intelligent main body with two channels | 1 | set | ||
| 2 | Vibration acceleration sensor (including magnetic seat) | 2 | piece | 30mv/g | |
| 3 | Special cable of vibration sensor | 2 | rope | 5m | |
| 4 | Laser speed sensor | 1 | piece | 5－200cm | |
| 5 | Special cable of laser speed sensor | 1 | rope | 5m | |
| 6 | USB Cable | 1 | rope | ||
| 7 | Recharger | 1 | set | ||
| 8 | Reflective stripe | 1 | piece | ||
| 9 | Cassette of laser speed sensor | 1 | set | ||
| 10 | Electronic Scale | 1 | set | ||
| 11 | Software | 1 | piece | ||
| 12 | Manual | 1 | set | ||
| 13 | Certificate of soundness | 1 | piece | ||
| 14 | Packing Box | 1 | set | ||
| 15 | Packing List | ||||
| 16 | Laptop | 1 | set |
