220vac Portable Vibration Calibrator Frequency From 1 To 1280 Hz Hg-5026

220vac Portable Vibration Calibrator Frequency From 1 To 1280 Hz Hg-5026
220vac Portable Vibration Calibrator Frequency From 1 To 1280 Hz Hg-5026 220vac Portable Vibration Calibrator Frequency From 1 To 1280 Hz Hg-5026

Large Image :  220vac Portable Vibration Calibrator Frequency From 1 To 1280 Hz Hg-5026

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO CE GOST
Model Number: HG-5026
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 4700~6000 set
Packaging Details: in High quality carton
Delivery Time: 7~15 working days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 100 sets per month

220vac Portable Vibration Calibrator Frequency From 1 To 1280 Hz Hg-5026

Description

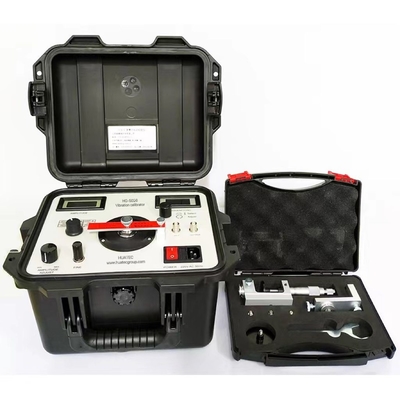

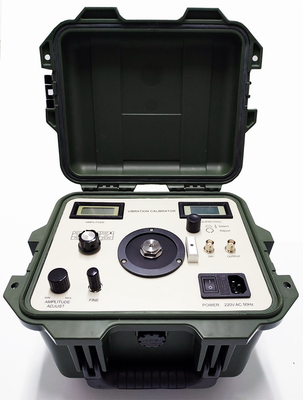

Product Name: Portable Vibration Calibrator Model: HG-5026
Frequency: From 1 To 1280 Hz Probe: 5mm And 8mm Probes
Display: 3 1/2 Digit Display For Vibration And Frequency Power Supply: 220Vac (optional 110Vac)
High Light:

220vac portable vibration calibrator

,

1hz portable vibration calibrator

,

small volume portable shaker vibration calibrator

at any frequency from 1 to 1280 Hz HG-5026 Portable Vibration Calibrator



HG-5026 vibration calibrator can be used to calibrate vibration accelerometer, velocity and proximity transducer and also a vibration measuring instrument. Standard sine signal vibration at any frequency from 1 to 1280 Hz can be defined in the calibrator. The amplitude of the acceleration, velocity and displacement, can be defined through potentiometers and shown on digital displays. Either horizontal or vertical vibration can be generated. HG-5026 combines sine signal generator, power amplifier, standard transducer, vibration meter and a shaker in one and features a small volume, high accuracy and easy operation. It can be used either in laboratory or on site.



Specifications
Frequency: from 1 to 1280 Hz
Amplitude accuracy:
Acceleration (@10m/s2 pk) 40Hz to 320Hz + 0.3dB + 1digit
20Hz to 640Hz + 0.5dB +1digit
Velocity (@20mm/sec rms) 40Hz to 320Hz +0.5dB +1digit
Displacement (@50μm pk-pk) 40Hz to 320Hz + 0.5dB + 1digit

Proximity probe linearity calibration kits
Probe: 5mm and 8mm probes Range: 0~2.0mm

Display: 3 1/2 digit display for vibration and frequency

Maximum vibration amplitude & transducer weight

Wt



Freq

<100g <250g <500g
a(m/S2) v(mm/S) d(μm) a(m/S2) v(mm/S) d(μm) a(m/S2) v(mm/S) d(μm)
10Hz 2.5 28 1300 3.5 40 1800 4 45 2000
20Hz 15 85 1900 10 60 1300 5 28 640
40Hz 60 170 2000 35 100 1100 12 35 380
80Hz 100 141 800 40 60 320 14 20 110
160Hz 75 53 150 35 25 70 12 8.5 24
320Hz 50 18 25 30 10 15 10 3.5 5
640Hz 30 5 3 20 3.5 2 6 1 *
1280Hz 23 2 * 10 0.9 * 5 0.4 *



Size: 300 x250 x210(mm) Net Weight: 6 kg

Temperature: Operation: 0oC to 50 oC Storage: -20 oC to 70 oC

Power: 220Vac (optional 110Vac)
