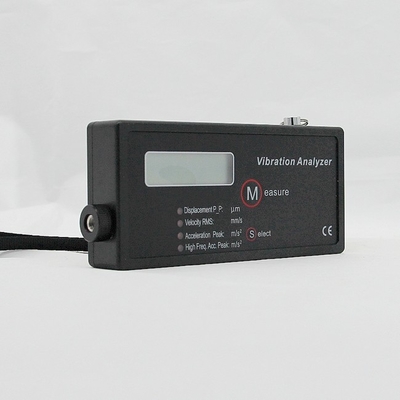

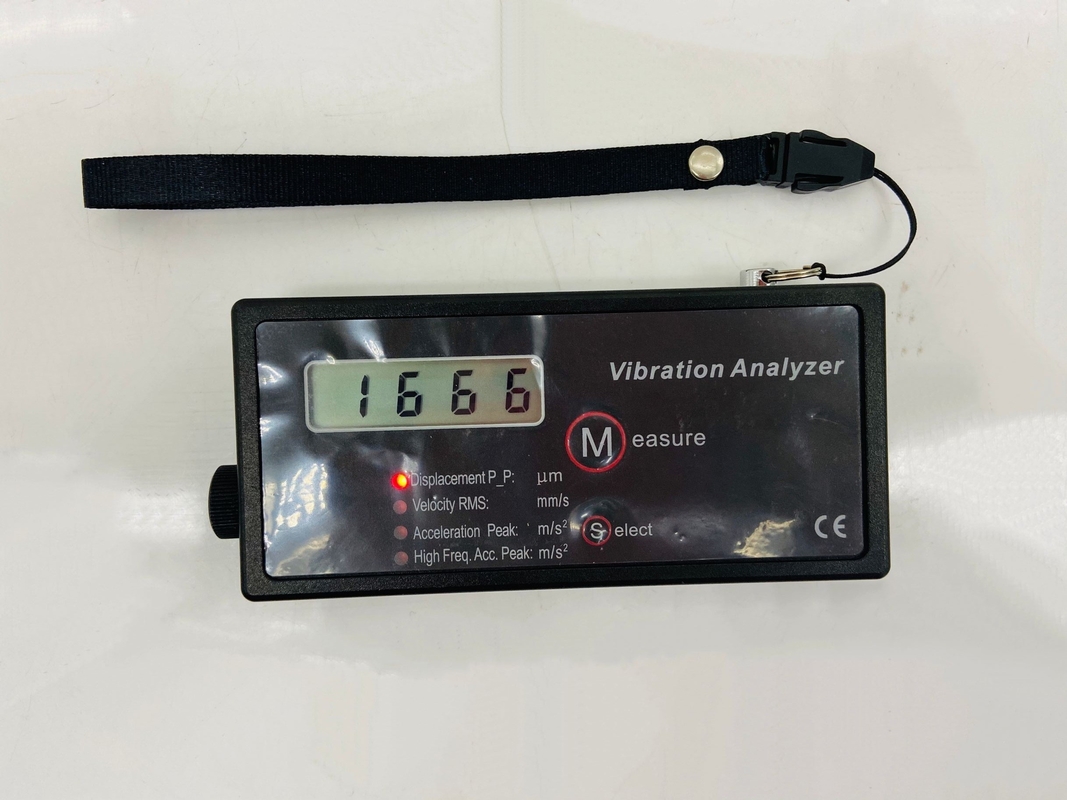

Explosion Proof Portable Vibration Meter EX-6 Hand Held Vibrometer HG908B

Explosion Proof Portable Vibration Meter EX-6 Hand Held Vibrometer HG908B
Explosion Proof Portable Vibration Meter EX-6 Hand Held Vibrometer HG908B
Explosion Proof Portable Vibration Meter EX-6 Hand Held Vibrometer HG908B Explosion Proof Portable Vibration Meter EX-6 Hand Held Vibrometer HG908B Explosion Proof Portable Vibration Meter EX-6 Hand Held Vibrometer HG908B

Large Image :  Explosion Proof Portable Vibration Meter EX-6 Hand Held Vibrometer HG908B

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO CE GOST
Model Number: HG-908B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 800~1200 set
Packaging Details: in High quality carton
Delivery Time: 3~7 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100 sets per month
Contact Now

Explosion Proof Portable Vibration Meter EX-6 Hand Held Vibrometer HG908B

Description
Product Name: Portable Vibration Meter Model: HG-908B
Display: 3 1/2 LCD Digital Display, Sampling Per Second Velocity: 0.1—199.9 Mm/s (or 20 In/s) True RMS
Acceleration: 0.1—199.9 M/s2 (or 20 G) Eq. Peak Temperature Range: 0 - 50℃
High Light:

explosion proof portable vibration meter

,

handheld portable vibration meter

,

explosion proof handheld vibration meter

Explosion proof EX-6 Hand-Held Vibrometer HG908B portable vibration meter



Features:
Measuring vibration velocity, displacement, acceleration and high-frequency acceleration
Small size, transducer included,battery powered, Accelerometer may be integrated or external cable connected.
One button control both power and measurement. Very easy to use.
3 1/2 LCD digital display, sampling per second.
Holding function.
Automatic power off.
True RMS measurement.
Suitable for monitoring machinery vibration caused by imbalance, misalignment, gear & bearing faults and etc.



Specifications:
Amplitude Ranges:
Displacement 1—1999 m m (or 200 mil) Eq. peak-peak
Velocity 0.1—199.9 mm/s (or 20 in/s) true RMS
Acceleration 0.1—199.9 m/s2 (or 20 g) Eq. Peak
High Frequency Acceleration: 0.1—199.9 m/s2 (or 20 g) Eq. Peak
Overall accuracy: ±5%
Temperature range: 0 - 50℃
Frequency response:
Displacement 10-1000Hz
Velocity 10-1000Hz
Acceleration 10-1000Hz (908B)
10-5000Hz (908)
High Frequency Acceleration: 1000-5000Hz ±10%
Configuration:
HG908B: Integrated accelerometer with handheld probe
HG908: Outside accelerometer with magnetic mount & probe
Battery: 9V 6F22/Rechargeable, 25/10 hours of continuous operation.
Pickup: Accelerometer with handheld probe and/or magnetic mount
Dimensions: 13×6×2.3 cm; Weight: 200 g
Optional Intrinsically safe version with internal accelerometer
Explosion Proof Portable Vibration Meter EX-6 Hand Held Vibrometer HG908B 0

Explosion Proof Portable Vibration Meter EX-6 Hand Held Vibrometer HG908B 1
Explosion Proof Portable Vibration Meter EX-6 Hand Held Vibrometer HG908B 2
Explosion Proof Portable Vibration Meter EX-6 Hand Held Vibrometer HG908B 3
