Vibration Measurement Device Hg-8 Velocity Sensor For Industrial Application

Vibration Measurement Device Hg-8 Velocity Sensor For Industrial Application
Vibration Measurement Device Hg-8 Velocity Sensor For Industrial Application

Large Image :  Vibration Measurement Device Hg-8 Velocity Sensor For Industrial Application

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: HG-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 130~169 per set
Packaging Details: in High quality carton
Delivery Time: 5-10 days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100 sets per month

Vibration Measurement Device Hg-8 Velocity Sensor For Industrial Application

Description
Product Name: Velocity Sensor Model: HG-8
Max Range: 3mm (Peak-Peak) Amplitude Linearity: ±5%
Working Temperature: -30-80℃ Weight: 150g
High Light:

vibration measurement device velocity sensor

,

industrial application velocity sensor

HG-8 Velocity Sensor

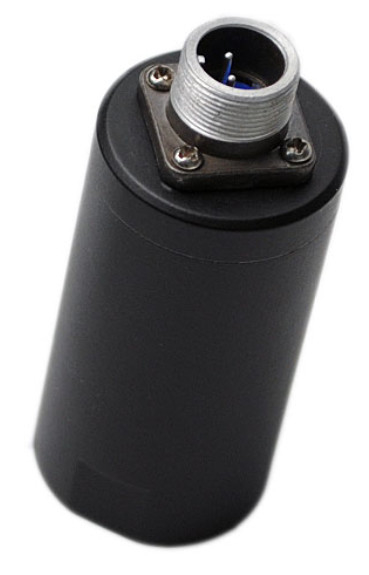

HG-8 velocity sensor is a vibration measurement device for industrial application. It can be used for machinery condition monitoring & fault diagnosis. It has very low impendence so suitable for electromagnetic noisy environment.



Vibration Measurement Device Hg-8 Velocity Sensor For Industrial Application 0

Vibration Measurement Device Hg-8 Velocity Sensor For Industrial Application 1

Specifications:

  • Sensitivity @80Hz: 20mv/(mm/s) ±5%;
  • Frequency Range: 10Hz ~ 1000Hz

          (10Hz -3db, 1000Hz 2db)

  • Max Range: 3mm (Peak-Peak)
  • Amplitude Linearity: ±5%
  • Installation: horizontal or vertical direction
  • Working temperature: -30-80 oC
  • Weight: 150g
  • Size: Φ30mm;
  • Hight:58mm without connector, 100mm with connector & cable
  • Optional sidewise connector
  • Installation thread:M8
  • Frequency Range 10Hz ~ 1000Hz
    (10Hz -3db, 1000Hz 2db)
    Max Range 3mm (Peak-Peak)
    Amplitude Linearity Amplitude Linearity
    Working temperature -30-80℃
    Weight 150g
    Size Φ30mm
    Hight 58mm without connector, 100mm with connector & cable
    Installation thread M8

Frequency Response

Vibration Measurement Device Hg-8 Velocity Sensor For Industrial Application 2
