Intelligent Dual Frequency Eddy Current Detector In Digital Electronic Balance

Intelligent Dual Frequency Eddy Current Detector In Digital Electronic Balance
Intelligent Dual Frequency Eddy Current Detector In Digital Electronic Balance Intelligent Dual Frequency Eddy Current Detector In Digital Electronic Balance Intelligent Dual Frequency Eddy Current Detector In Digital Electronic Balance Intelligent Dual Frequency Eddy Current Detector In Digital Electronic Balance

Large Image :  Intelligent Dual Frequency Eddy Current Detector In Digital Electronic Balance

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO CE GOST
Model Number: HEF-2D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 7040~8099 set
Packaging Details: in High quality carton
Delivery Time: 3~7 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month

Intelligent Dual Frequency Eddy Current Detector In Digital Electronic Balance

Description
Product Name: Eddy Current Detector Model: HEF-2D
Power: 110V ~ 220V, Built-in Rechargeable Supply: Lithium Battery 8000MAH
Testing Method: Eddy Current Method Operating Temperature: -20° ~ 60°C
High Light:

intelligent eddy current detector

,

dual frequency eddy current detector

,

digital electronic balance eddy current detector

HEF-2D 10Hz to 10MHz Frequency Range Intelligent Dual Frequency Eddy Current Detector In Digital Electronic Balance



Product description

1.HEF-2D is HUATEC electromagnetic product family adds a "forcing", using the world's most advanced DSP and FPGA integration technology greatly improve the signal processing speed, detection accuracy rate is 10 times that of similar products.

2. Suitable for almost all eddy current testing applications, but also effectively suppress interference signals, which not only has a conventional digital "dual" eddy current testing, also has a "magnetic memory, conductivity, thickness measurement" measurement functions, products widely used in military vulnerability assessment ( surface inspection blades, wheels, landing gear and other aircraft components); aircraft rivet holes or bolt holes in the surface crack detection hole without dismantling or removing fasteners state, the multilayer structure of the aircraft, and aluminum skin detection wing fuselage joints, the stress of the metal structure has a strong focus on early diagnosis function.

3.HEF-2D Fool-style operation available., Without long time special training, we will be able to work posts.

4. Special Note :Two functions required to configure different sensors support.



Applications

For aerospace, aviation, special, college education, metal parts, pipe, structure, weld, metal parts testing.



Technical Parameters



Power 1 10V ~ 220V, Built-in Rechargeable Operating
Temperature:
-20° ~ 60°C
Supply Lithium Battery 8000MAH Dimensions 250 MM X 200 MM X 85 MM
Standard
System
Cartesian Coordinates, Polar Coordinates Weight 2.0KG
Display Waveform, Value, So You At A Glance Using DSP Digital
Filtering
High-pass, Low-pass Frequency
(0Hz~2000Hz)
Alarm
Setting
Each Channel Independent Non-equal Size Settings Alarm Sound On / Off
Testing
Method
Eddy Current Method



Eddy current testing technical indicators:

1.Large screen, high brightness 5.7-inch color TFT-LCD, to solve the shortcomings of traditional screen

2.Independent Detection Frequency:2 in total

3.Frequency range: 10 Hz to 10 MHz, excellent frequency regulation performance

4.Gain: 0 dB ~ 99 dB, wide gain adjustment

5.Phase:0359°,Step 1 Deg , flexible phase rotation

6.Intelligent Mixing Unit:1 in total

7.Lift-off height: 1--3mm, no need to hide the surface layer processing

8.Automatic Balance:Digital Electronic Balance

9.Phase / non-amplitude, box and fan boxes, alarm mode to meet your testing needs

10.Probe Driver:Vpp=1 8V,meet different probe structures, multi-function

11.Independent X and Y gain adjustment

12.Digital Filtering:HPF(0Hz 2000Hz),LPF(0Hz 2000Hz)

13.Capacity USB 2.0 (Host) output connection

14.Eddy current detection signal playback, analysis, save, print function

15.Center coordinates: X Y adjustable

16.Operating System:Linux 2.6 Operation Language:English/Chinese

17.Display Mode:Impedance, time base, rectangular coordinates, polar coordinates

18.Power Supply : 1 10V220V, built-in rechargeable lithium battery 8000MAH

19.Online hotkey graphics, text help

20.Operating Temperature: -20° 60°

21.Standard system: Cartesian coordinates, polar coordinates

22.Instrument dimensions:250 MM x 200 MM x 85 MM,Weight:2.0KG

23.Display: waveform, value, so you at a glance

24.Using DSP digital filtering: high-pass, low-pass frequency(0Hz2000Hz)

25.Fast digital electronic balance

26.Automatically clear the "magnetic field" effect

27.Alarm setting: each channel independent non-equal size settings

28.Alarm sound: On / Off

29.100 sets of detection process parameter storage

30.10000 graphics storage, graphics can be saved as a U disk



Coating thickness measurement technical data:

1.Testing method: eddy current method

2.Matrix: iron, non-ferrous

3.Conductivity test range:0—1500μm (0—59.04mil)

4.Display units:um & mil convertible

5.Resolution:1um

6.Accuracy: ±1um

7.Data memory: the measurement data can be stored for more than 1000

8.Language: Chinese, English

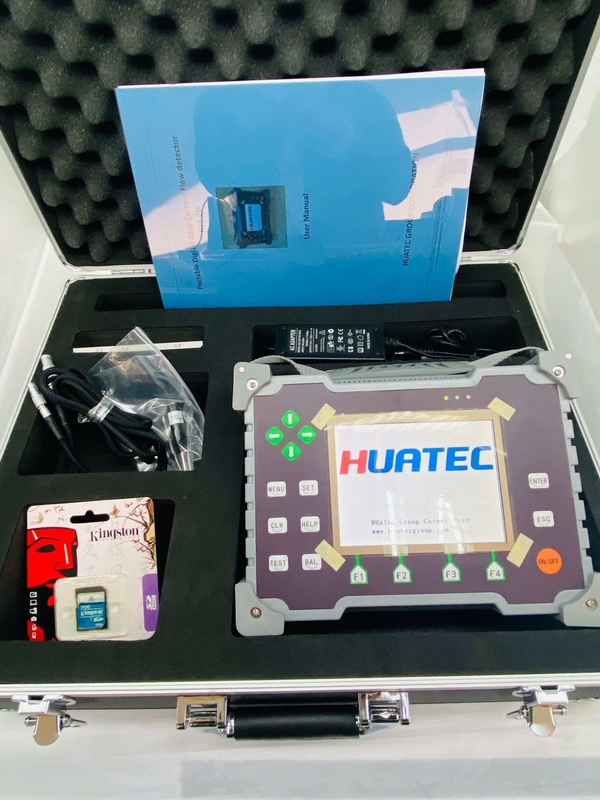

Intelligent Dual Frequency Eddy Current Detector In Digital Electronic Balance 0

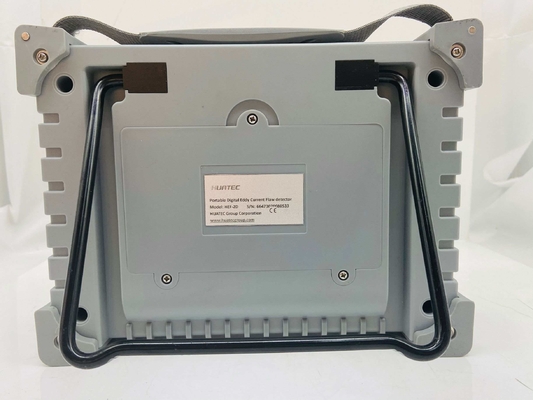

Intelligent Dual Frequency Eddy Current Detector In Digital Electronic Balance 1

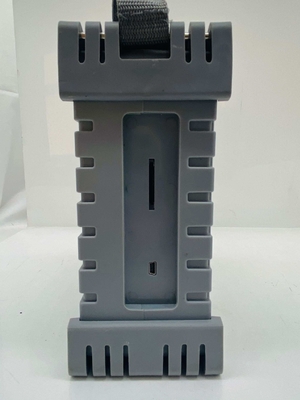

Intelligent Dual Frequency Eddy Current Detector In Digital Electronic Balance 2

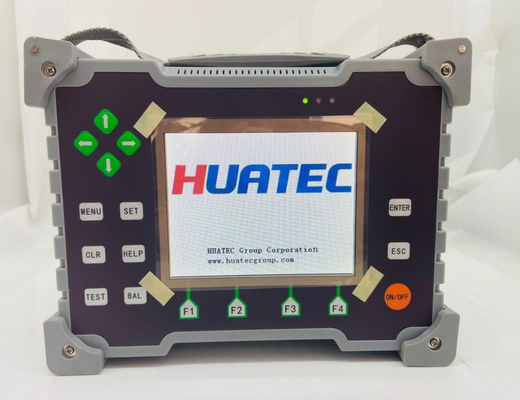

Intelligent Dual Frequency Eddy Current Detector In Digital Electronic Balance 3
