Real Time Spectral Chart Portable Vibration Meter Printing Function For Industrial Fields

Real Time Spectral Chart Portable Vibration Meter Printing Function For Industrial Fields
Real Time Spectral Chart Portable Vibration Meter Printing Function For Industrial Fields Real Time Spectral Chart Portable Vibration Meter Printing Function For Industrial Fields Real Time Spectral Chart Portable Vibration Meter Printing Function For Industrial Fields Real Time Spectral Chart Portable Vibration Meter Printing Function For Industrial Fields

Large Image :  Real Time Spectral Chart Portable Vibration Meter Printing Function For Industrial Fields

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO CE GOST
Model Number: HG-6380
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 598~689 set
Packaging Details: in High quality carton
Delivery Time: 3~7 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100 sets per month

Real Time Spectral Chart Portable Vibration Meter Printing Function For Industrial Fields

Description
Product Name: Vibration Meter Freq Range: Acceleration: 10Hz ~ 200Hz
Frequency Resolution: 0.25Hz Software: Yes
Display: TFT 320×200 Pixels With RGB Printer: Integrated Thermal
High Light:

real time portable vibration meter

,

spectral chart portable vibration meter

,

industrial fields portable vibration meter

Real -time Vibration Meter spectral chart Portable With printing function For Industrial Fields



HG-6380 uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also rotational speed. The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can test the acceleration, velocity, and displacement of vibration as well as rev (or inherent

frequency), also perform simple failure diagnosis. The technical specifications of HG-6380 comply with the requirements of GB 13823.3. HG-6380 is widely used in machinery, power, metallurgy, automobile and other industrial fields.



Specifications:



Model name HG-6380
Testing range
(Metric)
Acce: 0.1 ~ 205.6 m/s2
(peak)
Velo: 0.1 ~ 400.0 mm/s(RMS)
Disp: 0.001 ~ 9.0 mm(peak-peak)
Testing range
(Imperial)
Acce: 0.01 ~ 22.00 g(peak)
Velo: 0.01 ~ 15.75 in/s(RMS)
Disp: 0.1 ~ 356.3 mil(peak-peak)
Freq range Acceleration: 10Hz ~ 200Hz, 10Hz ~ 500Hz,10Hz ~ 1KHz, 10Hz ~
10KHz
Velocity: 10Hz ~ 1KHz
Displacement: 10Hz ~ 500Hz
Frequency
resolution
0.25Hz
Data memory 100 × 80 pieces of data and
100 spectrums
Software Yes
Temp 0℃ ~ 40℃
Tolerance ±5%
Speed
measuring range
30 ~ 300000 rpm
corresponding to 0.5 ~ 5000Hz
Measuring
distance
0.15 ~ 1m
Display TFT
320×200 pixels with RGB
Data interface USB
Overall
dimensions
212×80×35
Printer Integrated thermal
Weight 320g
Battery Rechargeable Li battery,1500mAh
Continuous
working time

About 50h

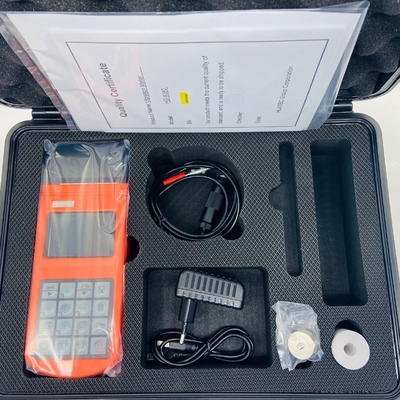

Standard delivery
Main unit. 1pc
Power Adapters (input:220V/50Hz, output:9V/1000mA) 1pc
Power Adapters (input:110V/50Hz,output:9V/1000mA) 1pc
Piezoelectric sensors 1pc
Magnetic seat (with 2 bolts) 1pc
Manual 1pc Package case 1pc

Optional accessories
Speed transducer (Lacer)
PC Software
Communication cable
Probe

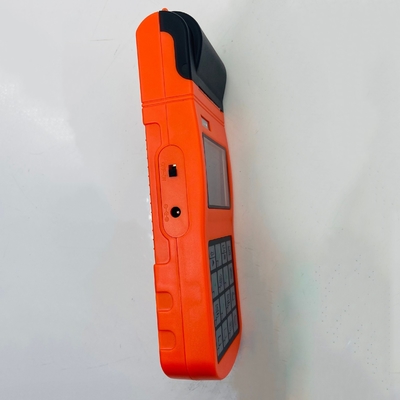

Real Time Spectral Chart Portable Vibration Meter Printing Function For Industrial Fields 0
Real Time Spectral Chart Portable Vibration Meter Printing Function For Industrial Fields 1

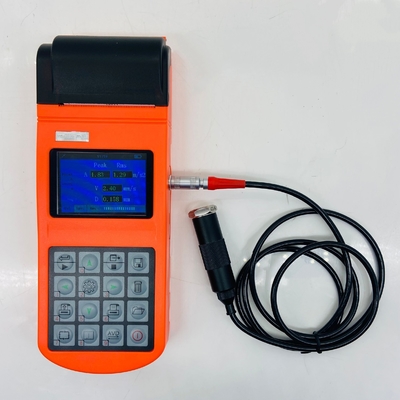

Real Time Spectral Chart Portable Vibration Meter Printing Function For Industrial Fields 2

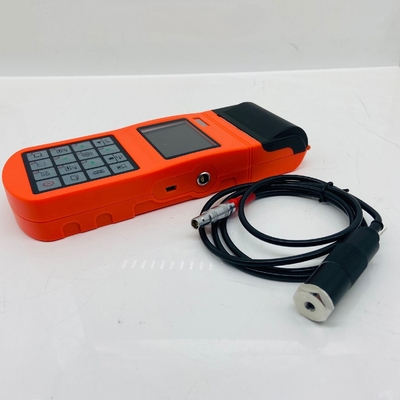

Real Time Spectral Chart Portable Vibration Meter Printing Function For Industrial Fields 3
