Product Details:
|
| Product Name: | Rockwell Hardness Tester | Model: | HR-3200 |
|---|---|---|---|
| Twin Tester: | Regular Rockwell & Rockwell Superficial Hardness | Standard: | ISO 6508-2, ASTM E18 |
| Preload: | 29.4N（3kgf）, 98.1N (10kgf) | Resolution: | 0.1HR |
| High Light: | regular digital rockwell hardness testing machine,advanced digital rockwell hardness testing machine,twin material hardness testing machine |
||

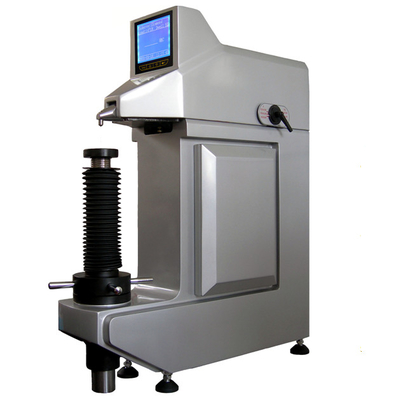

Regular Rockwell & Rockwell Superficial hardness Advanced Digital Twin Rockwell Hardness Tester
Model: HR3200
| Preload | 29.4N(3kgf), 98.1N (10kgf) |
| Total test force | 147.1N(15kgf), 294.3N(30kgf), 441.3N(45kgf), 588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf) |
| Scales | HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y HRA,HRB,HRC,HRD,HRE,HRF, HRG,HRH,HRK,HRL,HRM,HRP, HRR, HRS,HRV |
| Load dwell duration | 2～50s, can be set and stored |
| Resolution | 0.1HR |
| Display | High definition backlight LCD |
| Operation | Menu selectable, Membrane keypad |
| Data statistics | Avg., Max., Min., S, R available |
| Memory | Max 400 items of test results stored automatically |
| Data output | RS-232 to micro printer, USB port to external PC |
| Testing space | 260mm in vertical, 150mm in horizontal |
| Dimensions | 710mm×210mm×830mm |
| Power supply | AC, 220V/110V, 50～60Hz, 4A |
| Net weight | 110kg |
| Standard configuration | ||
| Host machine | 1 | |
| Standard hardness block for A scale | 1 | |
| Standard hardness block for B scale | 1 | |
| Standard hardness block for C scale | 1 | |
| Standard hardness block for 30N scale | 1 | |
| Standard hardness block for 30T scale | 1 | |
| ball indenter (1/16″) | 1 | |
| 120°cone diamond indenter | 1 | |
| Mounting screws for indenter | 2 | |
| Flat anvil | 1 | |
| “V ”shape anvil | 1 | |
| Power supply wire | 1 | |
| Screwdriver for indenter mounting | 1 | |
| Dust cover | 1 | |
| Optional accessories: | ||
| Short diamond indenter | ||
| Chisel diamond indenter | ||
| Slender diamond indenter | ||
| 1/8″ball indenter and spare steel ball | ||
| 1/4″ball indenter and spare steel ball | ||
| 1/2″ball indenter and spare steel ball | ||
| φ225 anvil | ||
| φ150 anvil | ||
| Standard hardness block for other scales | ||
| Micro printer | ||
