Product Details:
|
| Product Name: | Rockwell Hardness Tester | Model: | HR-150DX-Z |
|---|---|---|---|
| Standard: | ASTM E18 | Initial Test Force: | 10 KGF (98.07 N) |
| Hardness Resolution: | 0.1 HR | Data Output: | LCD Display |
| High Light: | high resolution digital rockwell hardness tester,hrc digital rockwell hardness tester,automatic digital hrc testing machine |
||

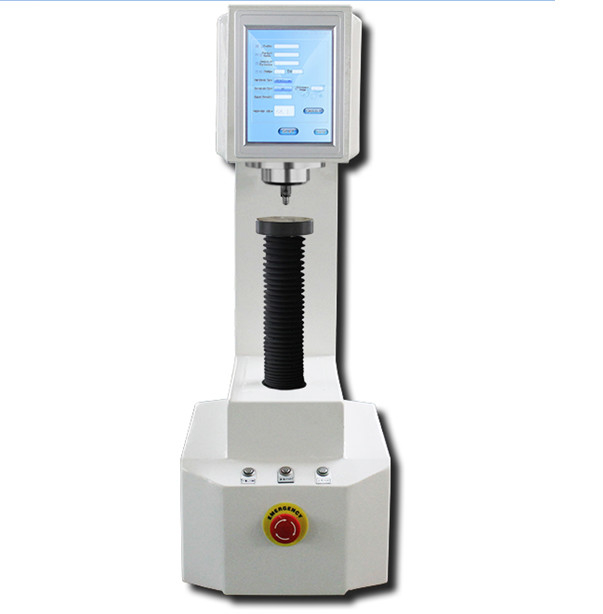

Automatic rockwell hardness tester,rockwell hardness testing machine
Model:HR-150DX-Z
2. Technical parameters
| Model | HR-150DX-Z |
| Initial test force | 10 KGF (98.07 N) |
| Main test force | 60kgf(588N) 100kgf(980N) 150kgf(1471N) |
| Hardness scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV |
| Rockwell test range | HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:100-120, HRM:85-115, HRR:114-125 |
| Meet standard | BSEN 6508, ISO 6508, ASTM E18, GB/T230 |
| Dwell time | 0-99s |
| Hardness resolution | 0.1 HR |
| Error of test force | < 0.5% |
| Data output | LCD display |
| Data is stored | The measured values are saved on USB flash drive in Excel format |
| Conversion scale | Rockwell, Brinell and Vickers |
| Maximum allowable specimen height | 300mm |
| Distance from indenter to wall | 200mm |
| size | 560 * 280 * 850 mm |
| Weight | 80kg |
| Power supply | AC220 + 5%, 50 ~ 60 hz |
3. Operation interface
4. Standard accessories
| Item | quantity | Item | Quantity |
| Diamond Rockwell indentor | 1 | Diameter 1.5875mm ball head | 1 |
| Hardness block (HRC high and low 2 pieces, HRB 1 piece) | 3 | Large, medium and V-shaped test tables | Each 1 |
| Power cord | 1 | U disk, touch pen | Each 1 |
| Product qualification certificate, warranty card | 1 | Instructions | 1 |
5. Optional accessories
indenter cover
