Product Details:
|
| Product Name: | Vickers Hardness Tester | Model: | HV-120PDX |
|---|---|---|---|
| Vickers Total Test Force: | 5kgf,10kgf,20kgf,30kgf,50kgf,100kgf,120kgf | Vickers Measurement Range: | 8-2900HV |
| Hardness Resolution: | 0.1HV | Data Output: | LCD |
| High Light: | high precision hardness testing machine,lcd hardness testing machine,high precision vickers hardness tester |
||
I. Product Introduction:

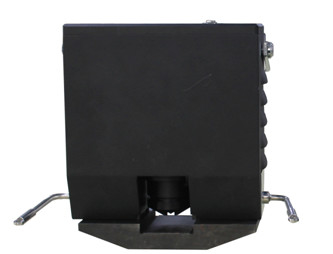

The portable Vickers hardness tester is mainly for materials with magnetic adsorption ability to carry out Vickers measurement, materials without magnetic adsorption ability or small workpiece can be customized iron base to measure the workpiece.
The hardware part
1. Adopt electronic electric loading, high precision sensor and unique closed-loop control system.
2. Touch screen interface, easy to operate, directly select hardness scale, force value automatically change in the test parameters.
3. The test force can be automatically corrected by standard dynamometer.
4. High precision of force value.
Software part
1. Convenient carrying performance: The whole system design is small and exquisite, easy to install, simple operation.
2. Professional optical design: ensure Vickers indentation image clear, clear boundary.
3. Accurate image analysis: shape, brightness and edge calculation are integrated to improve the accuracy of measurement results.
4. With automatic measurement button, can be used for automatic measurement of standard samples, test is convenient.
5. Wide range of application: laboratory, or industrial workshop, can obtain accurate test results.
7. Powerful software functions: single measurement, batch measurement, hardness conversion table, data and image storage, database query, unqualified value alarm.
II,technical parameters:
| Symbol model | HV-120PDX |
| Vickers total test force | 5kgf,10kgf,20kgf,30kgf,50kgf,100kgf,120kgf |
| Vickers measurement range | 8-2900HV |
| Holding time | 0-99s |
| Hardness resolution | 0.1HV |
| Test force error |
0.5% |
| Data output | LCD |
| Data is stored | The measurements are saved on the computer in EXCEL format |
| Conversion scale | Rothschild, Brucellae |
| Conform to the standard | GB/T4340,ASTM E92 |
| Dimensions of parts to be measured |
Plane: area ≥180X70mm, thickness ≥5mm; Round rod (tube) : diameter > 250mm When 60 ~ 250mm, the lower part of the magnet is fixed with V-shaped pad and chain
|
| Software measurement resolution | 0.0001mm |
| Digital imaging | 1300000 |
| Image acquisition | Real-time display hardness indentation images, can store and print images |
| Measuring way | Manual measurement, automatic measurement (for standard samples) |
| Calibration method | Standard hardness block/length scale |
| Support language | Chinese/English (optional) |
| power supply | AC220+5%,50～60Hz,(software USB power supply) |
III ,Three, hardness tester operation interface:
The main interface
Hardness tester physical adsorption diagram
Standard Accessories:
| name | number | name | number |
| Product qualification certificate, warranty card | 1 | Diamond Vickers indenter | 1 |
| Portable Vickers hardness tester | 1 | Power supply transformer | 1 |
| Standard hardness block | 2 | Usb flash drive (containing software) | 1 |
| Bottom iron tower | 1 | Touch screen pen | 1 |
| power cord | 1 | instructions | 1 |
| Encryption dog | 1 |
(Optional) One portable power supply
|
1 |
