Product Details:
|
| Frequency Resolution: | 0.25Hz | Measuring Distance: | 0.15 ~ 1m |
|---|---|---|---|
| Data Interface: | USB | Printer: | Integrated Thermal |
| High Light: | fft analysis function portable vibration analyzer,handheld portable vibration analyzer,fft analysis function handheld vibration analyzer |
||

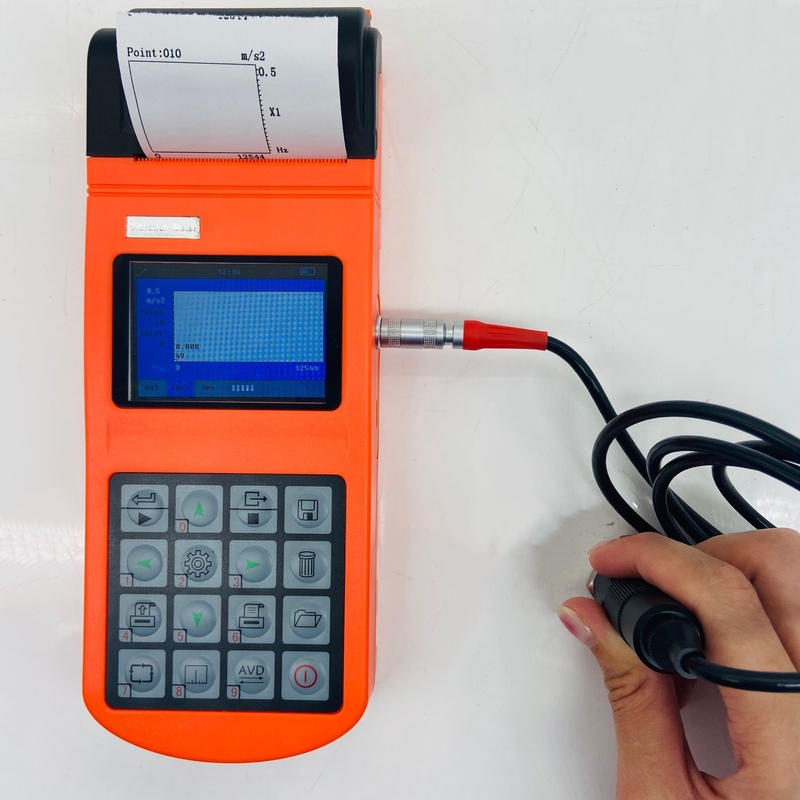

Portable Vibration Analyzer with FFT Analysis Function
The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can be used not only to test the acceleration, velocity, and displacement of vibration but also perform simple failure diagnosis.
| Specifications: | HG-6380 |
|
Testing range (Metric) |
Acce: 0.1 ~ 205.6 m/s2(peak) Velo: 0.1 ~ 400.0 mm/s(RMS) Disp: 0.001 ~ 9.0 mm(peak-peak) |
|
Testing range (Imperial) |
Acce: 0.01 ~ 22.00 g(peak) Velo: 0.01 ~ 15.75 in/s(RMS) Disp: 0.1 ~ 356.3 mil(peak-peak) |
| Freq range |
Acceleration: 10Hz ~ 200Hz, 10Hz ~ 500Hz,10Hz ~ 1KHz, 10Hz ~ 10KHz Velocity: 10Hz ~ 1KHz Displacement: 10Hz ~ 500Hz |
| Frequency resolution | 0.25Hz |
| Data memory |
100 × 80 pieces of data and 100 spectrums |
| Software | Yes |
| Temp | 0℃ ~ 40℃ |
| Tolerance | ±5% |
| Speed measuring range |
30 ~ 300000 rpm corresponding to 0.5 ~ 5000Hz |
| Measuring distance | 0.15 ~ 1m |
| Display |
TFT 320×200 pixels with RGB |
| Data interface | USB |
| Overall dimensions | 212×80×35 |
| Printer | Integrated thermal |
| Weight | 320g |
| Battery | Rechargeable Li battery,1500mAh |
| Continuous working time |
About 50h |
HG-6380 uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also rotational speed.
The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can test the acceleration, velocity, and displacement of vibration as well as rev (or inherent frequency), also perform simple failure diagnosis.
The technical specifications of HG-6380 comply with the requirements of GB 13823.3. HG-6380 is widely used in machinery, power, metallurgy, automobile and other industrial fields.

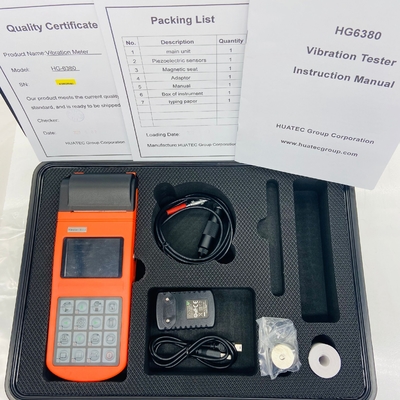

Standard delivery
Main unit. 1pc
Power Adapters
(input:220V/50Hz, output:9V/1000mA) 1pc
Power Adapters (input:110V/50Hz,output:9V/1000mA) 1pc
Piezoelectric sensors 1pc
Magnetic seat (with 2 bolts) 1pc
Manual 1pc
Communication cable
Package case 1pc
Optional accessories
Speed transducer (Lacer)
PC Software
Probe
