Product Details:
|
| Parameter: | RMS Of Vibration Velocity (mm/s) | Testing Range: | Velocity: 0.1mm/s~ 199.9mm/s |
|---|---|---|---|
| Frequency Range: | 10Hz ~ 1kHz | Accuracy: | Accuracy |
| Highlight: | 10hz handheld vibration meter,pump handheld vibration meter,1khz hand held vibration monitoring equipment |
||

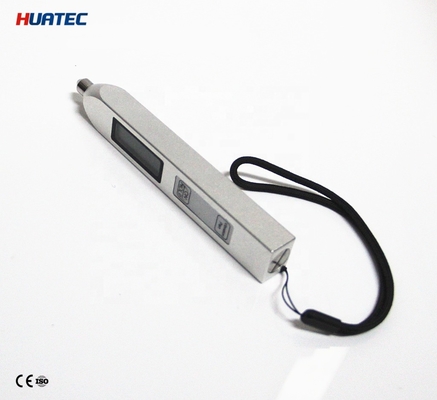

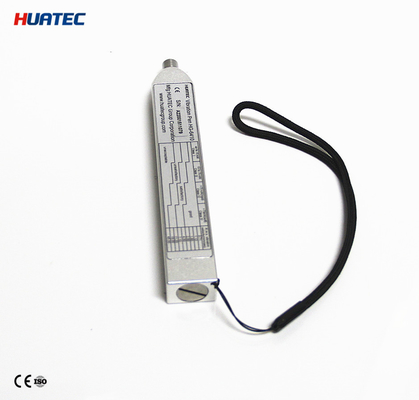

Digital Vibration Portable 10Hz - 1kHz Vibration Meter HG-6410 For pump, air compressor
Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so on.
Compact size, small weight, easy handling
Prompt testing of vibration on the workshop machines
| Parameter | Acceleration, Velocity, Displacement |
|
Testing range |
Acceleration:0.1m/s2-199.9m/s2(peak) Velocity: 0.1mm/s-199.9 mm/s(RMS) Displacement: 0.001mm-1.999 mm (peak-peak) |
|
Frequency range |
Acceleration: 10Hz ~ 1kHz(LO) 1kHz ~ 15kHz(HI) Velocity: 10Hz ~ 1kHz Displacement: 10Hz ~ 500Hz |
| Accuracy | ±5% ± 2digits |
| Display | 3 1/2 digits LCD |
| Power supply | two button batteries(LR44 or SR44) |
| Battery capacity | Approx. 5 hours working continuously |
| Operating temperature | 0℃ ~ 40℃ |
| Humidity | <85% |
| Dimension | 152mm×22mm×16mm |
For quick checking of unbalance misalignment, bearings and gears
Guard against mechanical malfunction
Holding tested value for 40 seconds
Automatic switch off after 40 seconds
HG6410 is used specially for velocity testing
Configuration:
| NO. | Item | Quantity | |
|
Standard Configuration |
1 | Main uni. | 1 |
| 2 | Screwdriver | 1 | |
| 3 | Batteries SR44LR44 1.5V | 2 | |
| 4 | Box | 1 | |
| 5 | Document | 1(set) |
